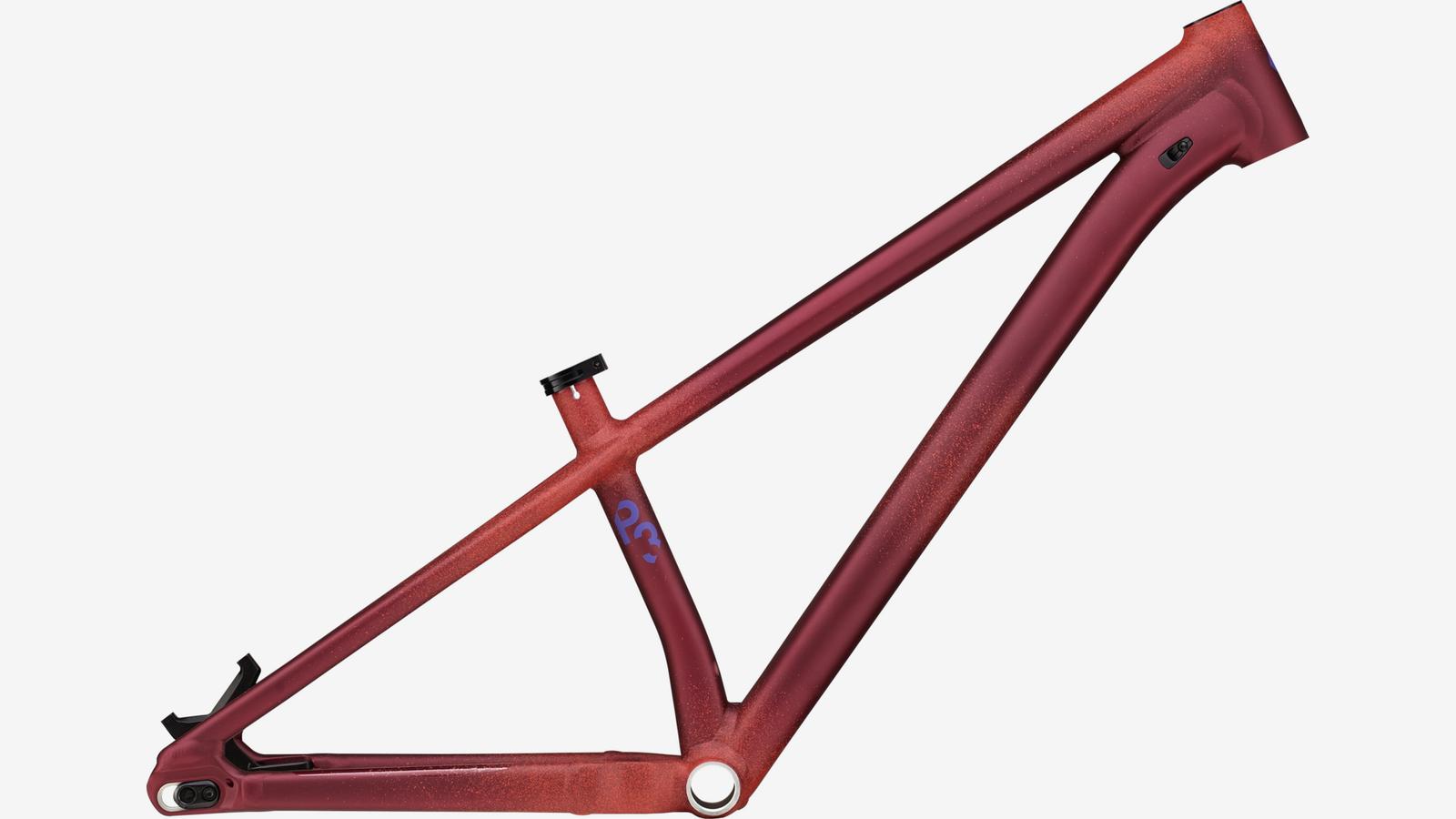

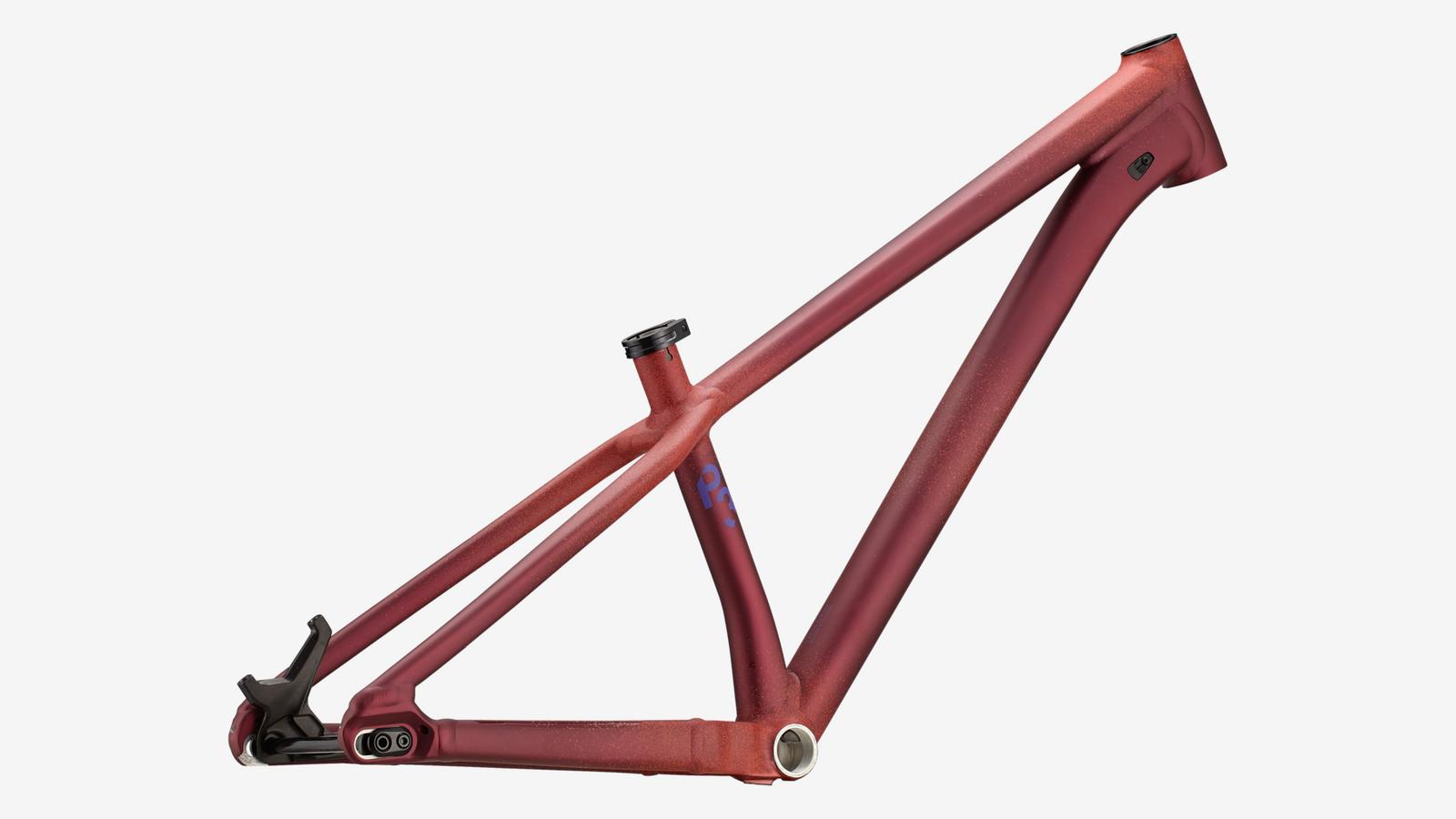

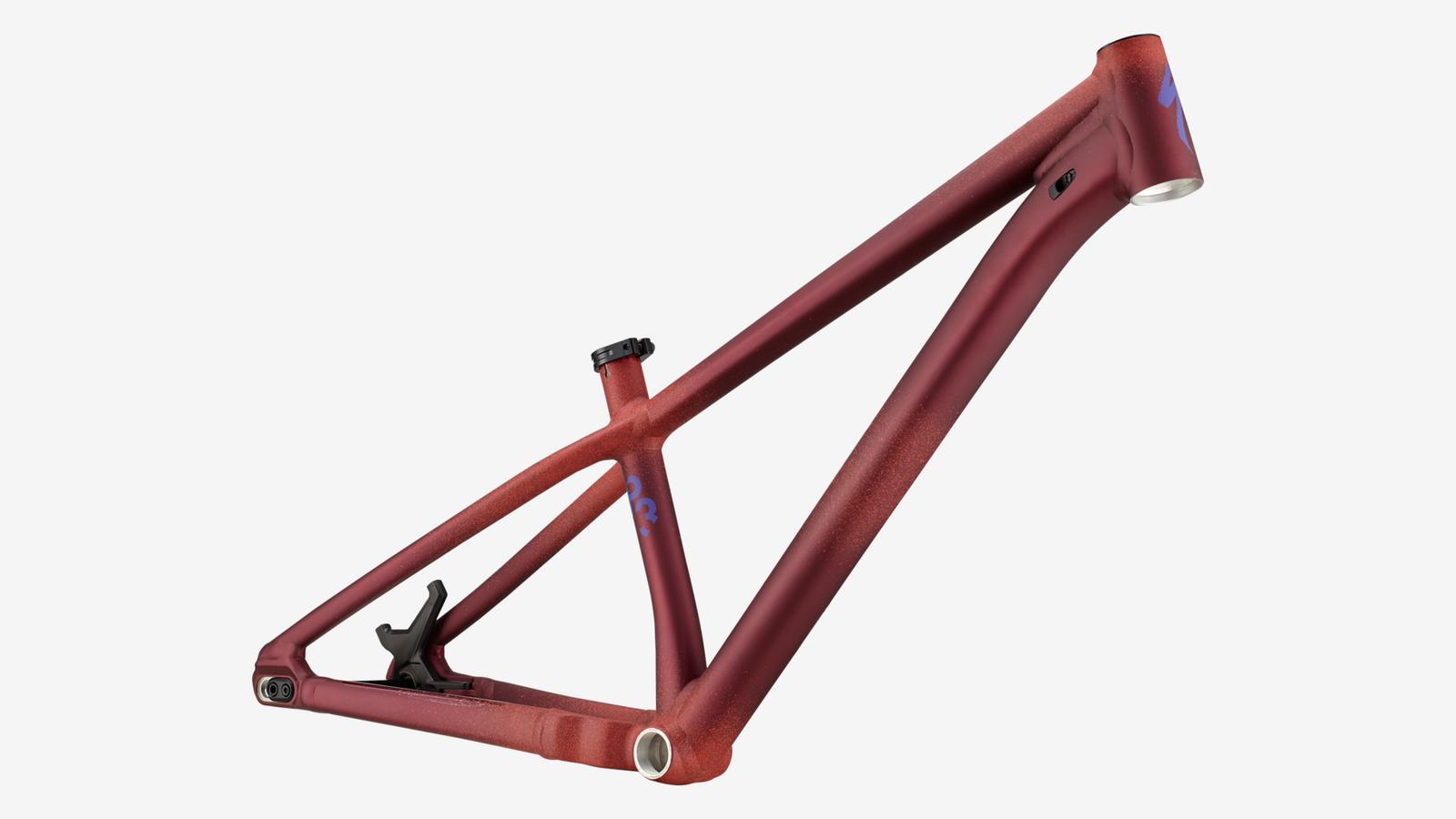

P.3 Frame
Ride it Risk-Free for 30 Days!
Every bike comes with our 30-Day Ride Guarantee. Take it home, ride it like you own it. If it’s not right, bring it back within 30 days & we’ll refund your purchase or help you find the right bike.
Normal wear and tear is expected because the only way to know it’s the right ride is to ride it.
Overview
This totally redesigned P.Series frame gives riders of all sizes a jumping off point to a life on bikes. The lightweight, but tough alloy frame is designed to take all the hits and keep rolling—across all frame sizes. Our approach to these robust bikes centers around delivering a simple, high-quality platform that's versatile for all riders, and packs in category-first features that make a difference to the rider.
SLEEK SIMPLICITY — For the rider focusing on progression, eliminating every other variable is paramount. The durable lightweight alloy frame of the P.Series stands up to the tough demands of a modern DJ rig and accepts internally routed cables.
SIZED FOR ALL — Frames available in dedicated 20”, 24”, and 26” configurations as well as the P.4 that can run both 26” and 27.5” (P.4 is spec’d with 27.5”).
REIMAGINE YOUR RIDE — P.Series frames are dropper ready, derailleur compatible, and use adjustable dropouts.
TOUGH TECH — Boost spacing in the rear, a tapered headtube, and threaded bottom-bracket make P.Series stiff and easy to maintain.
- Specialized P.3, A1 Premium Alloy, 26", fully-butted tubing, dropper post compatible and 27.5" wheel compatible.
About the P.3 Frame
The Build Specs
Frameset
| Frame | Specialized A1 Premium Aluminum, 26/27.5" compatible, fully butted tubing, tapered head tube, BSA threaded 73mm BB shell, 12x148 thru-axle sliding dropouts, single speed or geared compatibile, internal cable routing, 30.9mm seat tube, dropper post compatible |
|---|---|
| Seat Binder | Alloy, single-bolt, 34.9mm |
The Geometry
| Measurement | P3 |
|---|---|
| Stackmm | 563 |
| Reachmm | 415 |
| Head-Tube Lengthmm | 115 |
| Head-Tube Angledegrees | 68.5 |
| B-B Heightmm | 318 |
| B-B Dropmm | 22 |
| Trailmm | 94 |
| Fork Length (full)mm | 480 |
| Fork Rake/Offsetmm | 37 |
| Front-Centermm | 668 |
| Chain-Stay Lengthmm | 385 |
| Wheelbasemm | 1052 |
| Top-Tube Length (horizontal)mm | 598 |
| Bike Stand-Over Heightmm | 691 |
| Seat-Tube Lengthmm | 335 |
| Seat-Tube Angledegrees | 72 |
| Wheel Sizeinch | 26 |
