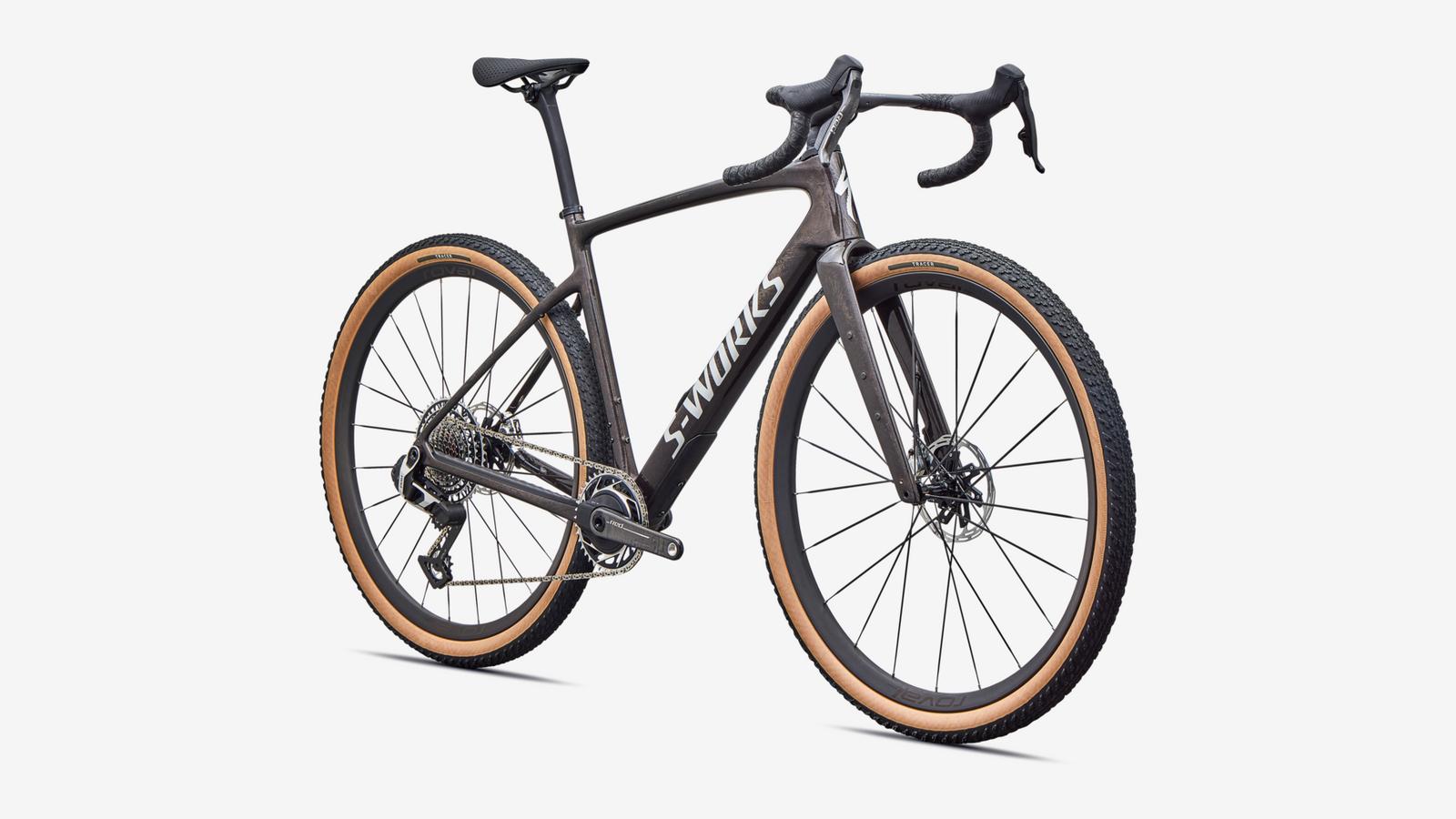

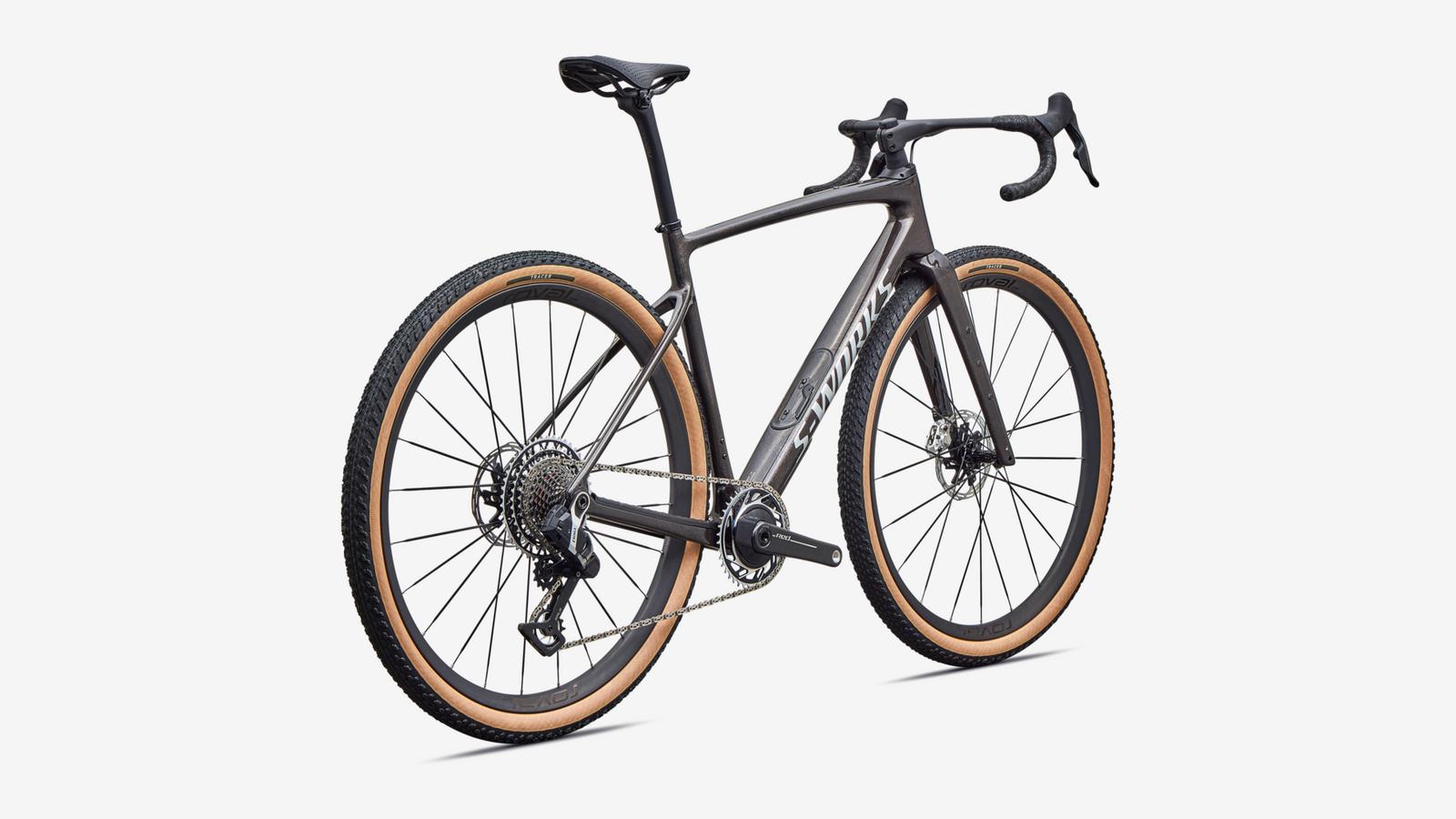

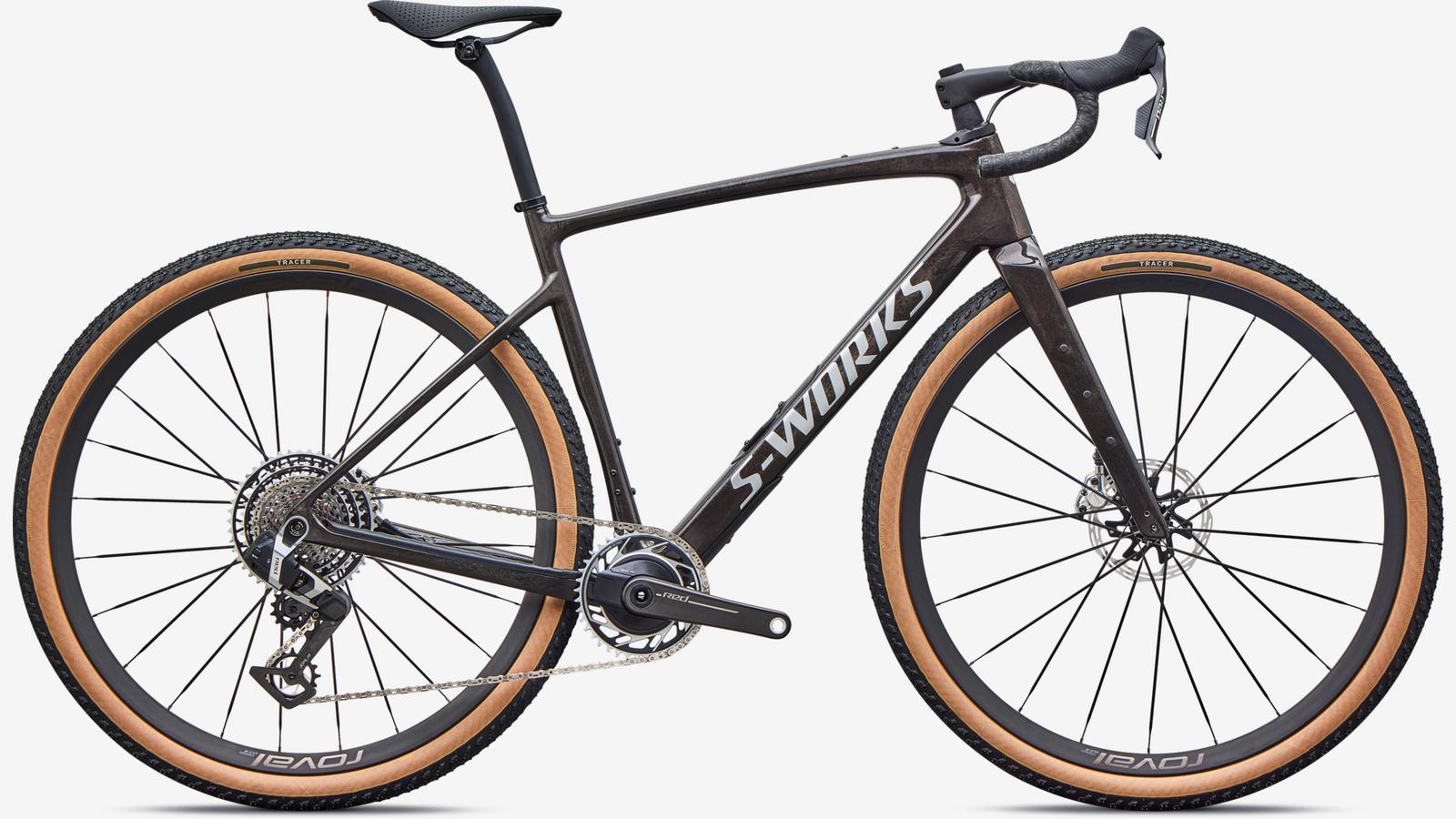

S-Works Diverge 4
$12,499.99
Ride it Risk-Free for 30 Days!
Every bike comes with our 30-Day Ride Guarantee. Take it home, ride it like you own it. If it’s not right, bring it back within 30 days & we’ll refund your purchase or help you find the right bike.
Normal wear and tear is expected because the only way to know it’s the right ride is to ride it.
Overview
Diverge 4
The Ultimate Getaway Vehicle
Adventure approved & tuned for long-distance racing. The Diverge 4 gravel bike is made for full-gas weekend rides and off-grid epics. With internal cable routing, Future Shock 3.0 suspension, massive tire clearance, and the biggest internal storage in gravel, the best gravel adventure bike in the world just got better. Chase adventure on the smoothest, most confident gravel bike ever.
Features
Use
Gravel Adventure
Frameset
FACT 12r Carbon
Suspension
Future Shock 3.3
Drivetrain/Wheels
SRAM RED XPLR/Roval Terra CLX III
Storage
SWAT 4.0
Weight
8.2 kg
About the S-Works Diverge 4
The Build Specs
Frameset
| Frame | Specialized Diverge FACT 12r carbon, SWAT™ Door integration, Future Shock suspension with integrated cable routing, threaded BB, 12x142mm thru-axle, flat-mount disc, UDH dropout |
|---|---|
| Fork | FRK TLA,ROAD,END FRK M2.1,CRBN |
Brakes
| Front Brake | SRAM RED E1, hydraulic disc |
|---|---|
| Rear Brake | SRAM RED E1, hydraulic disc |
Drivetrain
| Bottom Bracket | Ceramic Speed BB Alpha, BSA DUB |
|---|---|
| Shift Levers | SRAM RED AXS E1, hydraulic disc |
| Rear Derailleur | SRAM RED AXS XPLR E1, 13-speed |
| Chain | SRAM RED E1 |
| Crankset | SRAM RED E1 XPLR, DUB Wide, 40t, Quarq Power Meter |
| Cassette | SRAM RED XPLR E1, 13-speed, 10-46t |
Wheels & Tires
| Inner Tubes | 700x32-50mm, 40mm Presta valve |
|---|---|
| Front Tire | Tracer TLR All Terrain Gravel Tire, 700x50c, Tubeless Ready |
| Rear Tire | Tracer TLR All Terrain Gravel Tire, 700x50c, Tubeless Ready |
| Front Wheel | Roval Terra CLX III, Tubeless, 27mm internal width carbon rim, 25.5 mm depth, 4.9mm bead hook width, Roval LF18-F hub, 21h, Roval by ARRIS Composite Straight Pull Spokes (Ti end fittings) |
| Rear Wheel | Roval Terra CLX III, Tubeless, 27mm internal width carbon rim, 25.5 mm depth, 4.9mm bead hook width, Roval LF19-R hub, 24h, Roval by ARRIS Composite Straight Pull Spokes (Ti end fittings) |
Cockpit

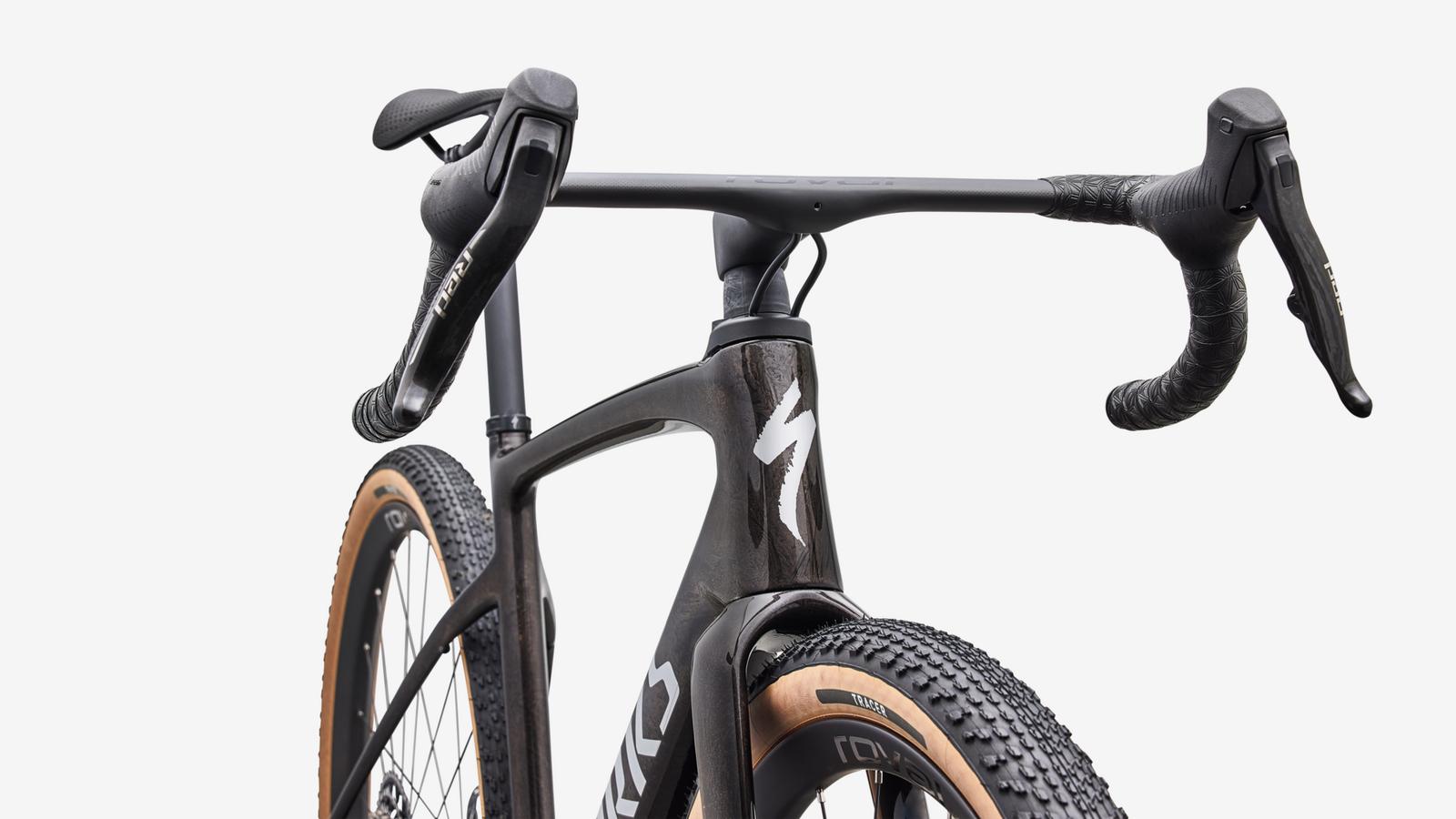

| Handlebars | Roval Terra Cockpit, Integrated Bar/Stem |
|---|---|
| SeatPost | Roval Terra Carbon Seat Post, 20mm Offset |
| Saddle | S-Works Power with Mirror |
| Seat Binder | Specialized Alloy, 30.8mm |
| Tape | Supacaz Super Sticky Kush |
Accessories
| SWAT | SWAT 4.1 internal downtube storage |
|---|
Weight
| Weight Size | 56 |
|---|---|
| Weight | 8.2 kg (18 lb, 1.2 oz) |
The Geometry
| Measurement | 49 | 52 | 54 | 56 | 58 | 61 |
|---|---|---|---|---|---|---|
| Stackmm | 563 | 578 | 592 | 610 | 634 | 659 |
| Reachmm | 365 | 374 | 387 | 400 | 412 | 425 |
| Head Tube Lengthmm | 90 | 104 | 116 | 135 | 161 | 187 |
| Head Tube Angledegrees | 70 | 70.5 | 71 | 71 | 71 | 71 |
| BB Dropmm | 85 | 85 | 85 | 85 | 85 | 85 |
| Trailmm | 72 | 68 | 65 | 65 | 65 | 65 |
| Fork Length, Fullmm | 391 | 391 | 391 | 391 | 391 | 391 |
| Fork Rake/Offsetmm | 55 | 55 | 55 | 55 | 55 | 55 |
| Front Centermm | 604 | 613 | 626 | 645 | 665 | 686 |
| Chainstay Lengthmm | 430 | 430 | 430 | 430 | 430 | 430 |
| Wheelbasemm | 1019 | 1031 | 1041 | 1060 | 1081 | 1102 |
| Top Tube Length, Horizontalmm | 521 | 537 | 556 | 575 | 593 | 613 |
| Bike Standover Heightmm | 700 | 725 | 754 | 779 | 805 | 832 |
| Seat Tube Lengthmm | 400 | 430 | 470 | 500 | 530 | 560 |
| Seat Tube Angledegrees | 74.5 | 74 | 74 | 74 | 74 | 74 |
