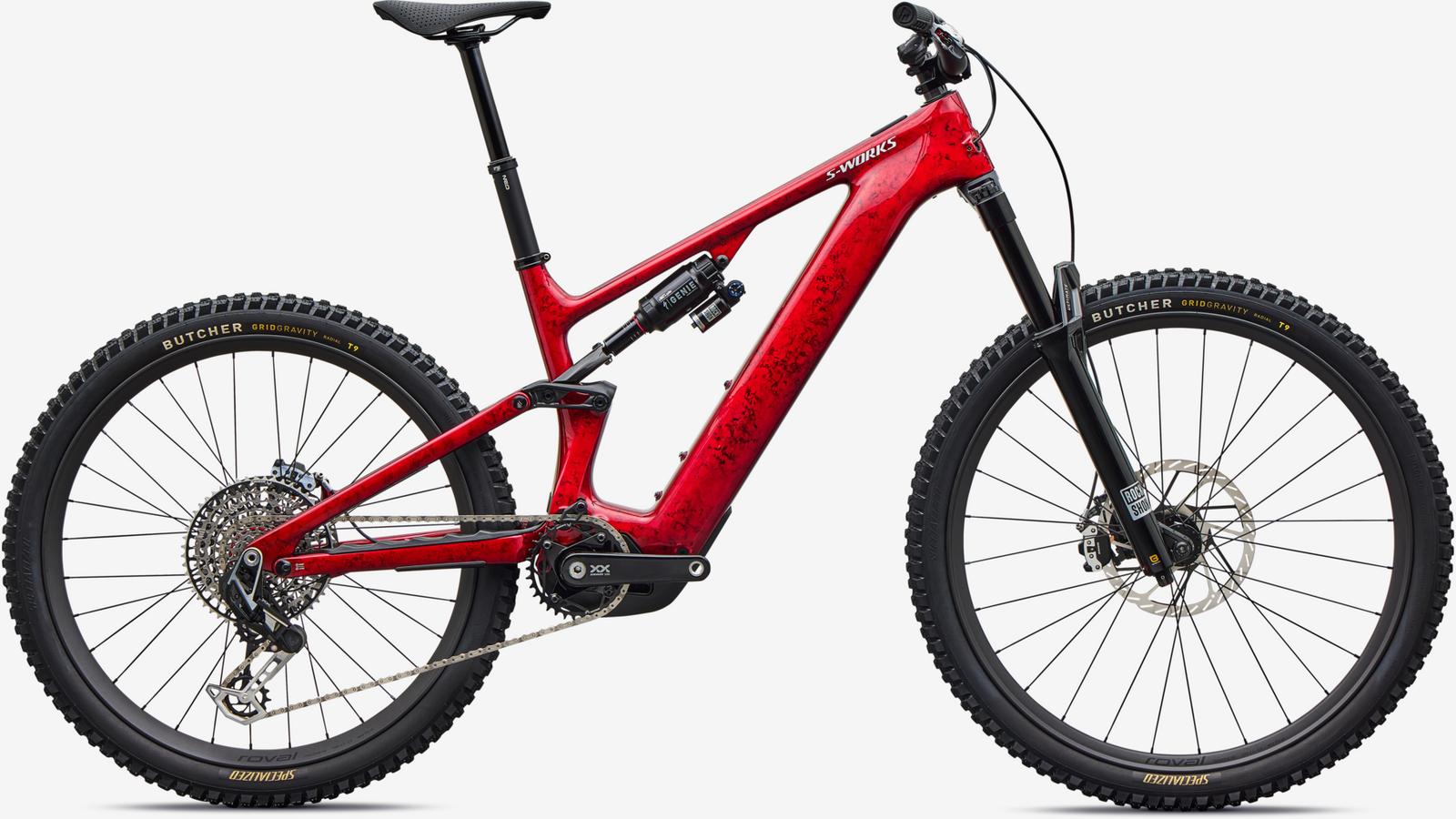

S-Works Turbo Levo 4
$12,499.99
Ride it Risk-Free for 30 Days!
Every bike comes with our 30-Day Ride Guarantee. Take it home, ride it like you own it. If it’s not right, bring it back within 30 days & we’ll refund your purchase or help you find the right bike.
Normal wear and tear is expected because the only way to know it’s the right ride is to ride it.
Overview
Where Super Meets Natural
S-Works Turbo Levo 4
The Specialized Science Club Introduces the S-Works Levo 4, an electric mountain bike so advanced it transforms you into a cycling cyborg. Together you're SuperNatural, fortified with super power, traction, control, and range to conquer any off-road terrain. Levo 4, Where Super Meets Natural.
Features
Use
Full Power E-MTB Trail
E-System
S-Works 3.1 Motor w/ 850 watts peak power & 111 Nm torque, 900 Wh battery, up to 4.63 hour range w/ optional Range Extender
Frame
FACT 11m Carbon w/ Carbon Link, Geo Adj & SWAT E-MTB Storage
Suspension
Front: 160mm RockShox ZEB Ultimate fork
Rear: 150mm RockShox Super Deluxe Ultimate shock w/ GENIE
Rear: 150mm RockShox Super Deluxe Ultimate shock w/ GENIE
Drivetrain
SRAM XX Eagle AXS Transmission
Wheels
Roval Traverse HD carbon wheels w/ Butcher Grid Gravity Radial 2.4" tires
About the S-Works Turbo Levo 4
The Build Specs
E-Bike
| Motor | Specialized 3.1 S-Works motor, 111Nm power, 850W power |
|---|---|
| UI/Remote | Mastermind TCU, 2.2" high resolution screen, fully customizeable with Specialized app, works with Apple Find My |
| Battery | BTRY TLA,PA BTRY XXXXX,PLUTO,SBC-B33,PLTX,NCR2270B,PANASONIC |
| Charger | Specialized 12amp smart charger, 4 different charge functions including Standard, Fast, Eco, and charge to 80% |
| Wiring Harness | CABLE ASSY TLA,PLUTO,MAIN HARNESS,C17510,CHOGORI;FS |
Frameset
| Frame | Levo 4 frame, 150mm travel, w/SWAT storage, side entry battery, fork travel up to 180mm, adjustable head angle, BB height, chainstay length |
|---|---|
| Seat Binder | Alloy, 38.6mm |
| Rear Shock | Rockshox Vivid Coil Ultimate 210x55 |
| Fork | Psylo Gold RC 29", 160mm |
Brakes
| Front Brake | BRAKE, BREMBO,SILVER,26.F322.XX,FRONT,BLACK CALIPER, XXXMM HOSE LENGTH |
|---|---|
| Rear Brake | BRAKE, BREMBO,SILVER,26.F322.XX,REAR,BLACK CALIPER,XXXX MM HOSE LENGTH |
Drivetrain
| Rear Derailleur | SRAM XX Eagle Transmission Derailleur |
|---|---|
| Shift Levers | SRAM AXS Pod Ultimate with Discrete Clamp |
| Cassette | SRAM XX Transmission, XS 1297, 10-52t |
| Chain | SRAM XX, T-Type |
| Crankset | SRAM XX Carbon crank, 160mm, ISIS interface |
| Chainrings | SRAM 34t T-Type chainring, 104 BCD, steel |
Wheels & Tires
| Front Wheel | WH-TRAVERSE HD 240 DEG DF 29 27.5 28H 32H OS;FS |
|---|---|
| Rear Wheel | WH-TRAVERSE HD 240 DEG DF 29 27.5 28H 32H OS;FS |
| Front Tire | Fox 38 Factory, 29", 160mm, Grip X2 damper, Kashima, 44mm offset, 15x110 boost, through axle |
| Rear Tire | Fox 38 Factory, 29", 160mm, Grip X2 damper, Kashima, 44mm offset, 15x110 boost, through axle |
| Inner Tubes | Specialized TPU inner tube |
Cockpit
| Stem | STEM, FOX RACE FACE, 847-00-021-01, TURBINE,35MM BORE, 40MM, BLACK, NO THREAD LOCK |
|---|---|
| Handlebars | Race Face Era Carbon Handlebars, 35mm clamp, back-sweep 8-degrees, up-sweep 5 degrees, 800mm width, S1/S2: 40mm rise, S3-S6: 55mm rise |
| Grips | Deity Lockjaw, Lock On, 32mm OD, 133mm Length, Black |
| Saddle | Specialized S-Works Power Mirror, Ti Rails, 143mm/155mm |
| SeatPost | New Fox Transfer wireless, direct plug in to Pluto system. S2: 150mm, S3: 175mm, S4: 200mm, S5: 225mm??, S6: 240mm?? |
Accessories
| SWAT | TT WRAP,MTB,PA TRAIL FSR J1 |
|---|
The Geometry
| Measurement | S2 | S3 | S4 | S5 | S6 |
|---|---|---|---|---|---|
| Stackmm | 618 | 626 | 638 | 652 | 667 |
| Reachmm | 435 | 455 | 480 | 505 | 535 |
| Headtube Lengthmm | 95 | 103 | 117 | 132 | 149 |
| Headtube Angledegrees | 64.5 | 64.5 | 64.5 | 64.5 | 64.5 |
| BB Heightmm | 350 | 350 | 350 | 350 | 350 |
| BB Dropmm | 29.5 | 29.5 | 29.5 | 29.5 | 29.5 |
| Trailmm | 132 | 132 | 132 | 132 | 132 |
| Fork Length (full)mm | 577 | 577 | 577 | 577 | 577 |
| Fork Rake/Offsetmm | 44 | 44 | 44 | 44 | 44 |
| Front Centermm | 765 | 789 | 820 | 851 | 888 |
| Chainstay Lengthmm | 435 | 435 | 435 | 435 | 435 |
| Wheelbasemm | 1200 | 1223 | 1254 | 1286 | 1323 |
| Top-tube Length (horizontal)mm | 578 | 599 | 627 | 655 | 689 |
| Bike Standover Heightmm | 753 | 754 | 753 | 758 | 761 |
| Seat Tube Lengthmm | 390 | 405 | 425 | 445 | 465 |
| Seat Tube Angledegrees | 77 | 77 | 77 | 77 | 77 |
| Saddle Height for Effective ST Anglemm | 690 | 735 | 780 | 825 | 870 |
| Max Seatpost Insertionmm | 274 | 289 | 313 | 337 | 357 |
| Min Seatpost Insertionmm | 80 | 80 | 80 | 80 | 80 |
