Haul ST

$2,699.99
Color
Size
Ride it Risk-Free for 30 Days!

Every bike comes with our 30-Day Ride Guarantee. Take it home, ride it like you own it. If it’s not right, bring it back within 30 days & we’ll refund your purchase or help you find the right bike.



Normal wear and tear is expected because the only way to know it’s the right ride is to ride it.

Haul ST

Haul ST

$2,699.99

- Cargo Active BIKES -

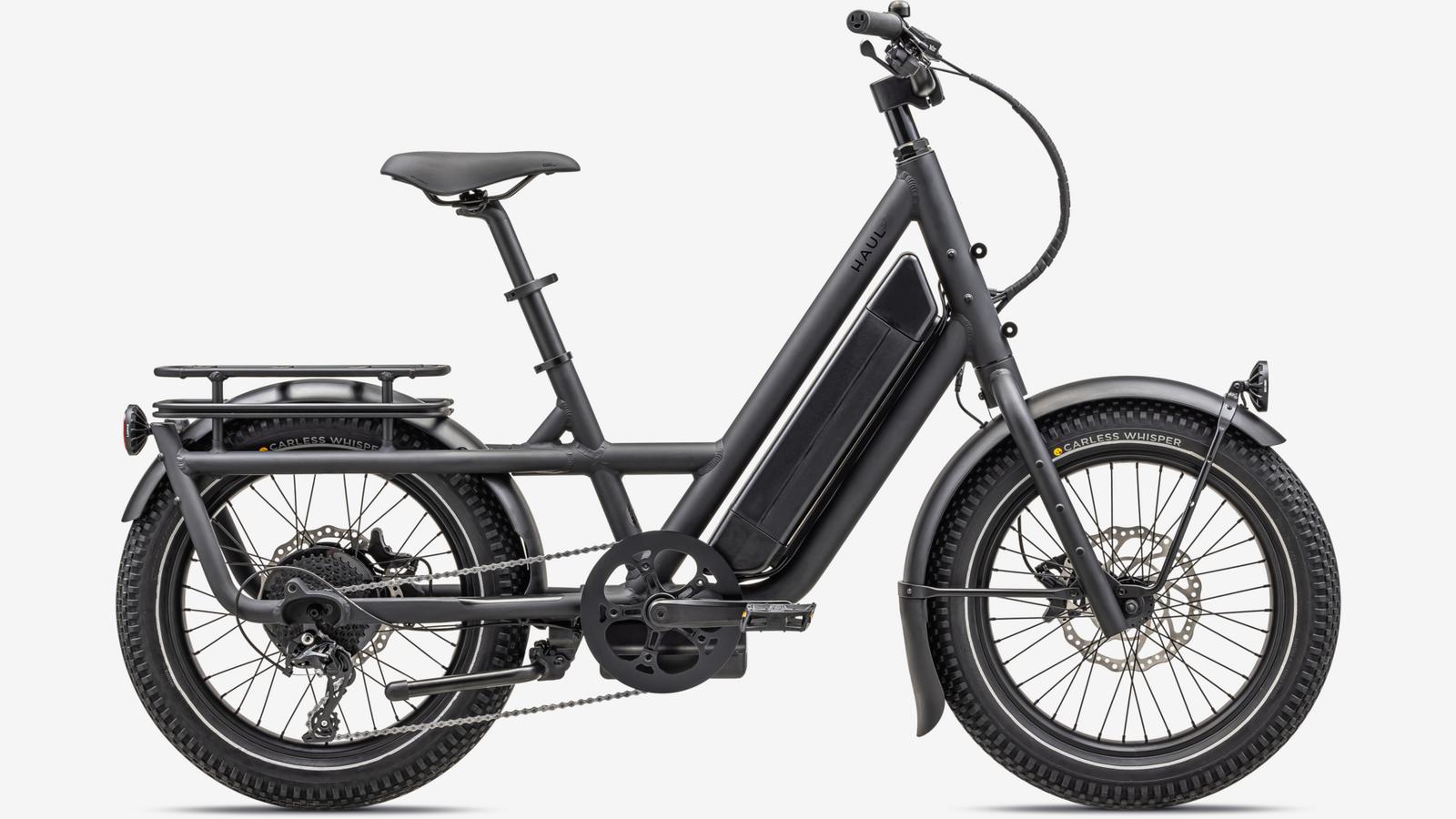

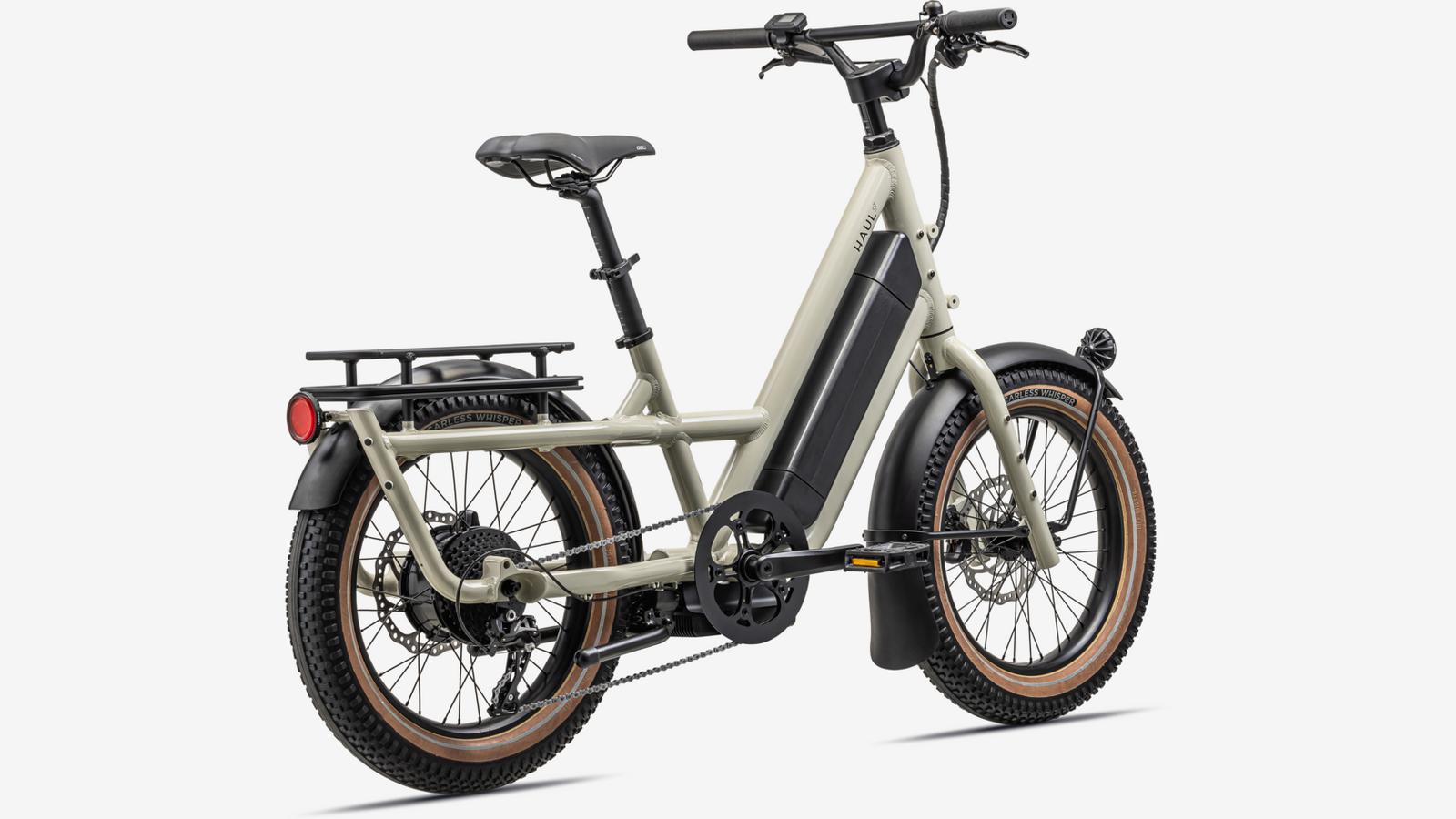

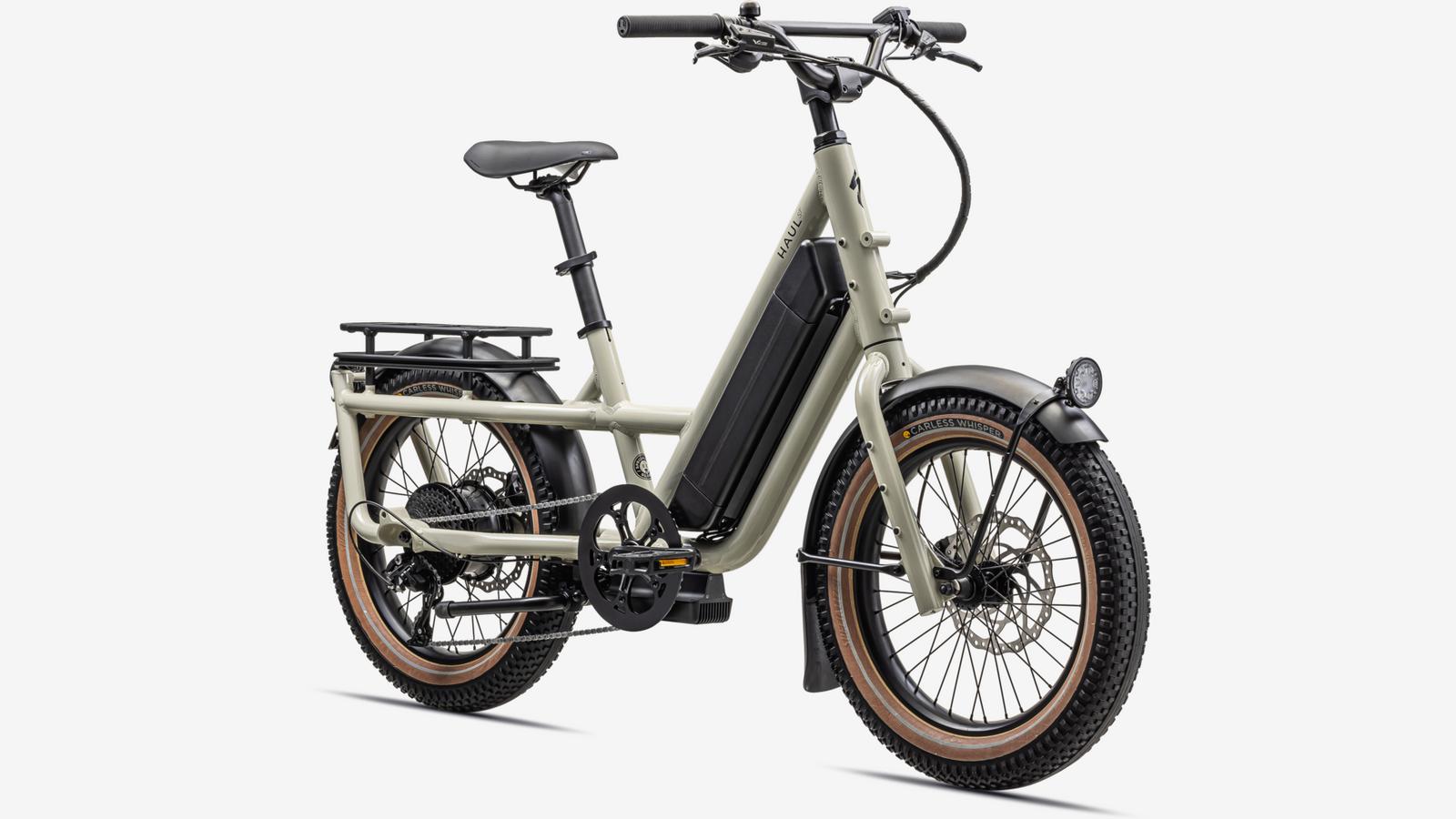

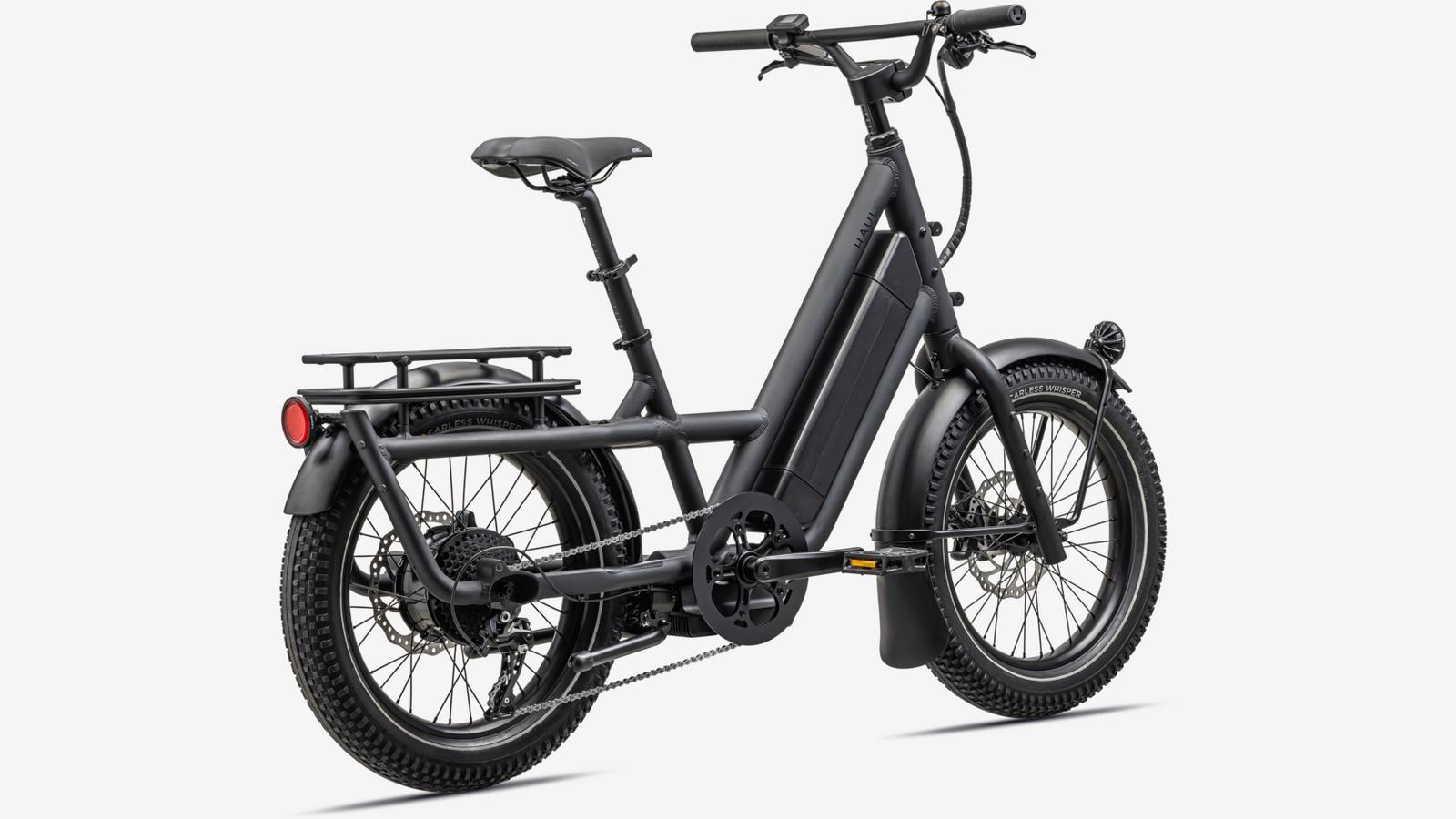

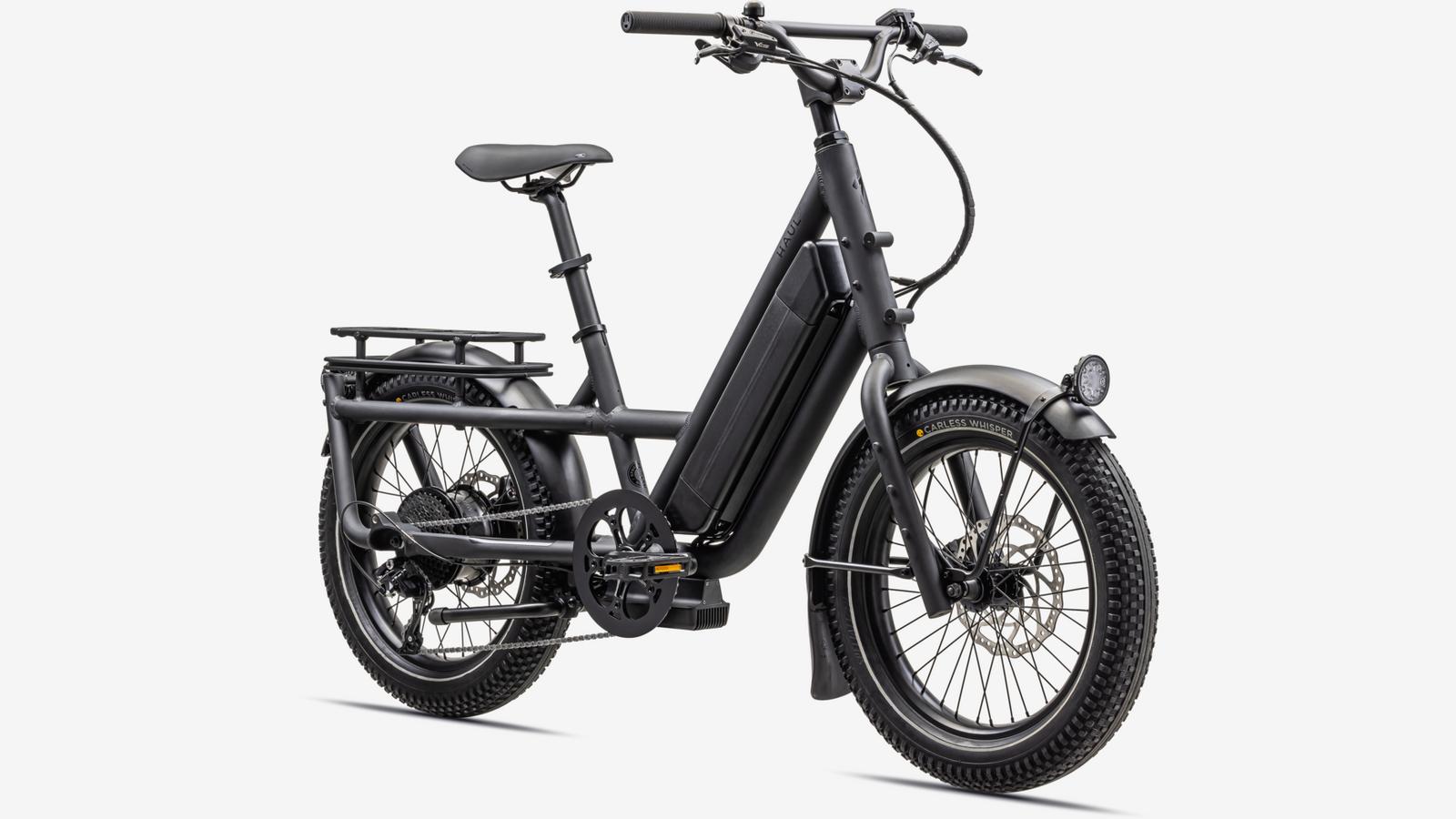

Specialized Haul ST Cargo Active Bike

Overview

Whatever you’re into, get more into it with the Specialized Globe Haul ST. It’s down for the ride. With 419 pounds of cargo capacity (rider included) up to 60 miles at a time, this fully customizable electric bike has the speed, power, range, and stability to get you wherever you need to go with whatever you need. With a grip of mounting opportunities you can bring the kids, a kayak, and stop on the way home for groceries. Don’t sweat it getting dark on you either. Integrated front and rear lights will have you dialed from dawn patrol to golden hour.

POWERED UP. The rear hub motor will have you zooming up hills with all your gear. Need a little extra boost to make it through an intersection safely? Crank up the power to get up to top speed quick, then dial it back and hit the pedals for max range.

INCLUSIVE. All bodies, all fun. The unique single size frame fits riders comfortably all over the size spectrum. Using the Retül database, the adjustable fit was designed to be perfect for you. Make it longer here, shorter there, and you're ready to ride comfortably. The low center of gravity means it’s easy to handle for a newcomer or a pro, loaded up or loaded down.

READY TO ROLL. The Globe Haul ST is ready to rock straight out of the box with an included MIK-compatible rear rack, full coverage fenders, integrated lights and center stand. D.I.Y. yourself into gear-nirvana, with a whole host of Globe accessories compatible with the auxiliary mounting points… It’s your Globe, we’re just living in it.

  • 700w rear hub motor delivers enough power to get you and all your gear up steep hills and all the way across town at top speed. The 772wh battery provides up to 60 miles of range at the lower levels of pedal assist.
  • 419 lbs carrying capacity, rider included.
  • All rear racks have been updated to 132 lbs (60kg) max weight capacity - even those labeled ‘40kg’. So get Haulin’.
  • Unique, single-size frame fits riders from around 4’5” all the way up to 6'4". The telescoping seatpost has over 13 inches of adjustability, and the quill stem can extend almost six inches. It provides a comfortable ride to almost everyone measured in our Retül database.
  • 20” diameter wheels help keep weight low to the ground for improved stability. The extra wide 3.5” Carless Whisper tires provide comfort and traction on any terrain and feature a 3-ply casing for superior flat protection.
  • A lifetime warranty on the frame, and two year e-system warranty will keep your bases covered. With the Specialized network of service centers and superior customer service, you’re never on your own.

About the Haul ST

The Build Specs

E-Bike
Charger Globe charger, 48V System w/ Globe system charger plug, AC power cord included
Motor Globe custom tuned motor, alloy, 6-bolt disc, 9 speed freehub, bolt on, 36h
Battery Globe external battery, 772Wh, IPX7
UI/Remote Globe handlebar remote HMI, State of charge, Ride Mode display, USB plug, BLE
Wiring Harness Globe wiring harness, IP65
Frameset
Seat Binder Alloy, Bolt-type, 39mm
Frame Haul ST Premium Aluminum, Post mount disc brake, fender/rack mounts
Fork Globe Steel, Post mount disc brake, fender/rack mounts
2022 Globe Fork
Brakes
Rear Brake Tektro HD-T535, 4 piston caliper, hydraulic disc, 203mm rotor
Front Brake Tektro HD-T535, 4 piston caliper, hydraulic disc, 203mm rotor
Drivetrain
Chainrings 50T
Crankset Forged alloy arm, alloy chainring guard, 160mm
Chain KMC e9S EPT, anti-rust coating, 9-speed w/ reusable Missing Link™
Bottom Bracket Square-tapered, 100mm BB width, 184mm spindle, w/ torque sensor
Cassette SunRace, 9-Speed, 11-36t
Shift Levers microSHIFT Advent, 9-speed
Rear Derailleur microSHIFT, short cage, 9-speed
Wheels & Tires
Rims 20'', double-wall alloy, 50X20mm, 36h
Front Hub Alloy, 6-bolt disc, 110mm spacing, loose ball bearings, bolt on, 36h
Rear Tire Carless Whisper Reflect, 20X3.5
Front Tire Carless Whisper Reflect, 20X3.5
Inner Tubes Schrader, 32mm valve
Spokes Stainless, 13g/2.3mm
Cockpit
Grips Globe closed end slip on type, 155mm
Stem Globe, cargo 1.5X150mm quill stem
Handlebars Globe, cargo, alloy, 12-degree backsweep, 80mm rise, 31.8mm. 700mm width
Saddle Specialized Body Geometry Comfort Gel
Seatpost Telescoping, alloy, 2-bolt Clamp, 20mm offset, 34.9mm, 525mm
Double Extension Seatpost +/- 330mm, 34.9mm, 585mm, 20mm Offset
Accessories
Headlight Globe Cargo Drive, 1500 Lumen, remote switch, multiple modes.
Taillight Globe Cargo Drive, 50 Lumen
Fenders Globe Cargo fenders, w/headlight mount
Rack Globe, Short Tail, MIK HD interface, rail system
Kickstand Globe, Short Tail, center mount
Pedals Specialized Flat pedal
Bell Brass bell
Weight
Weight 35.0kg (77 lb, 2.6 oz)
Weight Size One Size

The Geometry

MeasurementHAUL ST
Reachmm345
Head-Tube Lengthmm292
Head-Tube Angledegrees70
B-B Heightmm285
B-B Dropmm5
Trailmm47
Fork Length (full)mm372
Fork Rake/Offsetmm55
Front-Centermm624
Chain-Stay Lengthmm465
Wheelbasemm1089
Top-Tube Length (horizontal)mm600
Bike Stand-Over Heightmm511
Seat-Tube Lengthmm366
Seat-Tube Angledegrees68
Stackmm610
Seat height - Maxmm852
Seat height - Minmm517
Bar height form ground - Maxmm1192
Bar height from ground - Minmm1051
