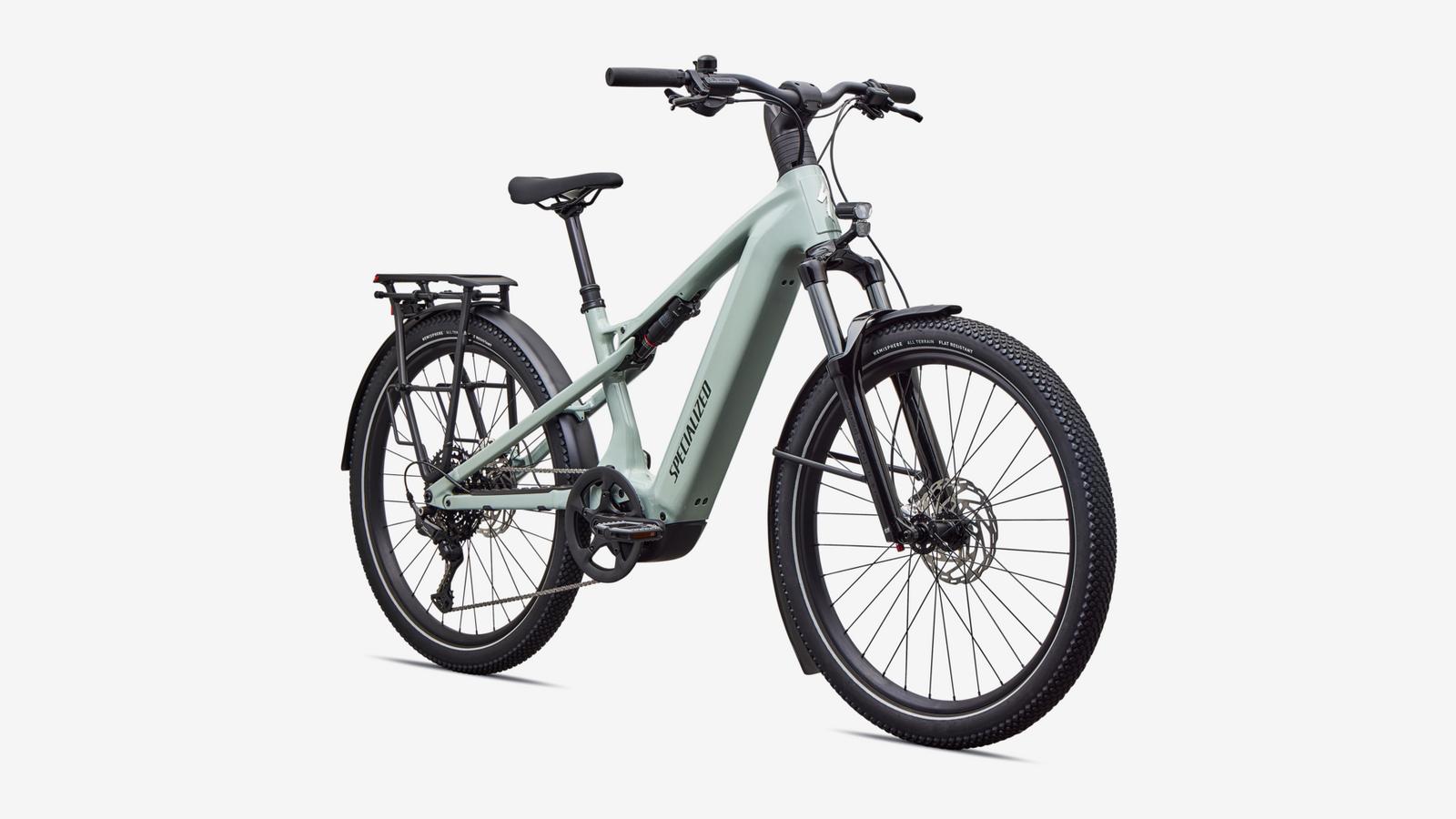

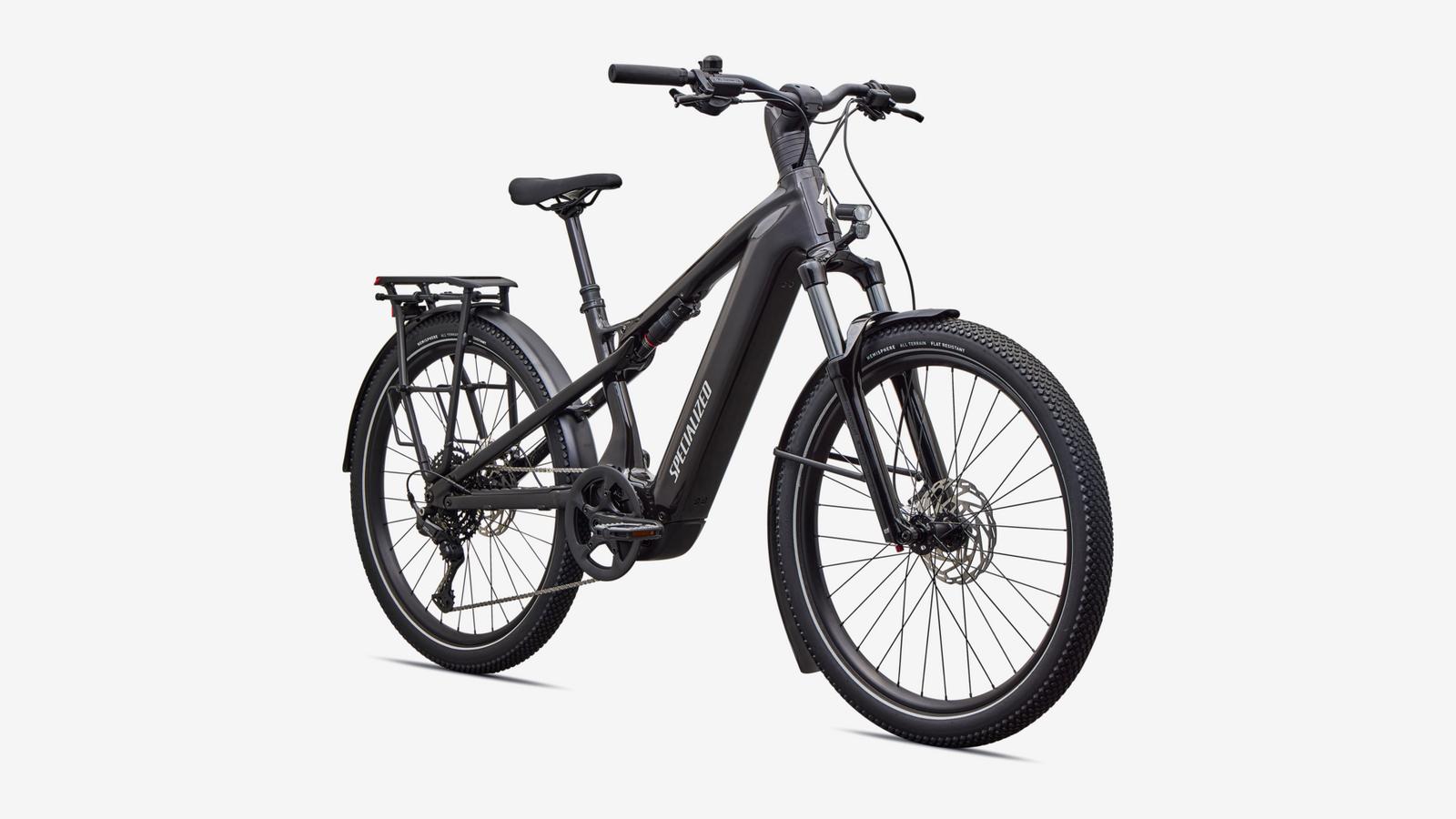

Turbo Vado 3 X 4.0
$5,499.99
Ride it Risk-Free for 30 Days!
Every bike comes with our 30-Day Ride Guarantee. Take it home, ride it like you own it. If it’s not right, bring it back within 30 days & we’ll refund your purchase or help you find the right bike.
Normal wear and tear is expected because the only way to know it’s the right ride is to ride it.
Overview

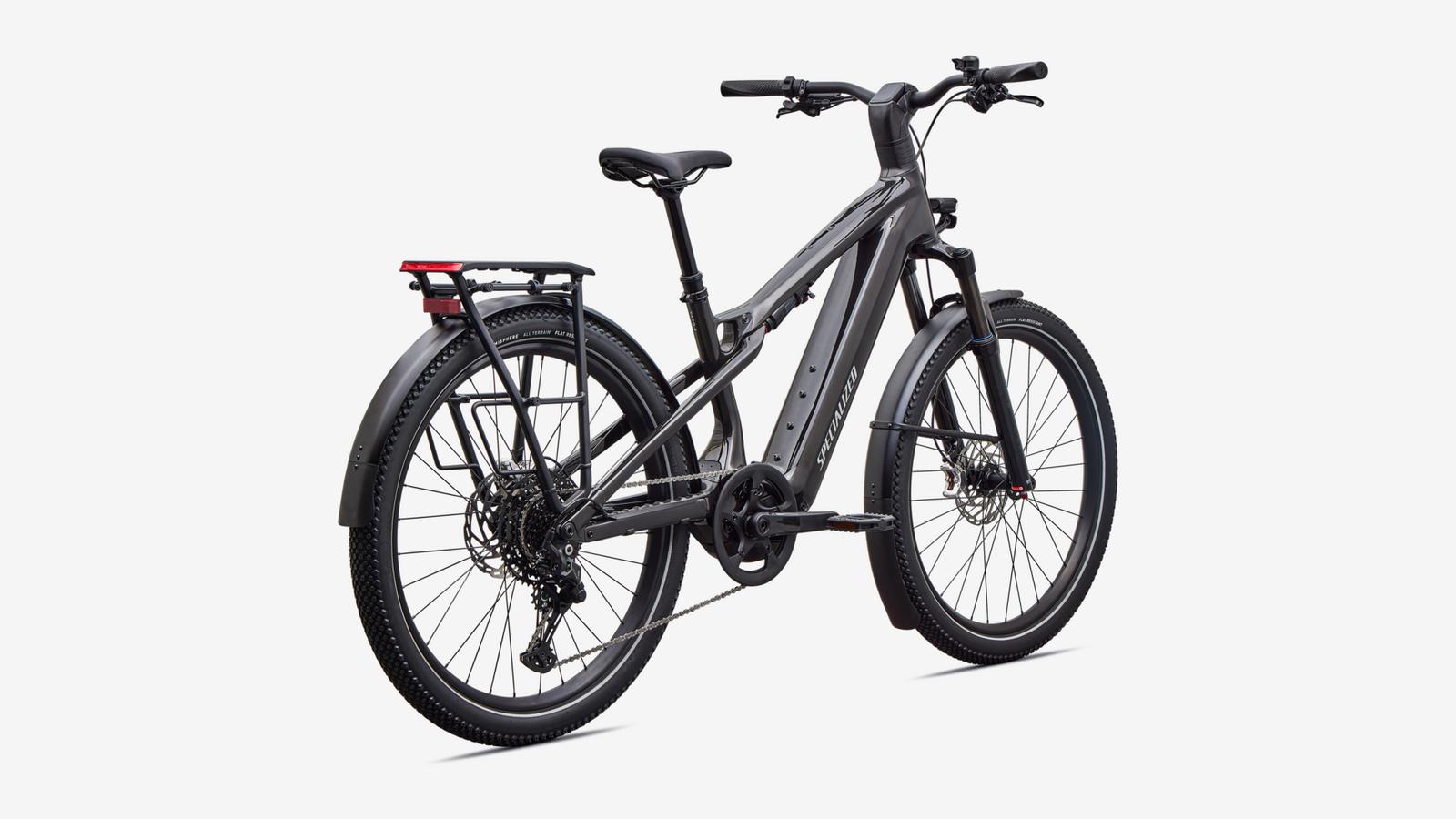

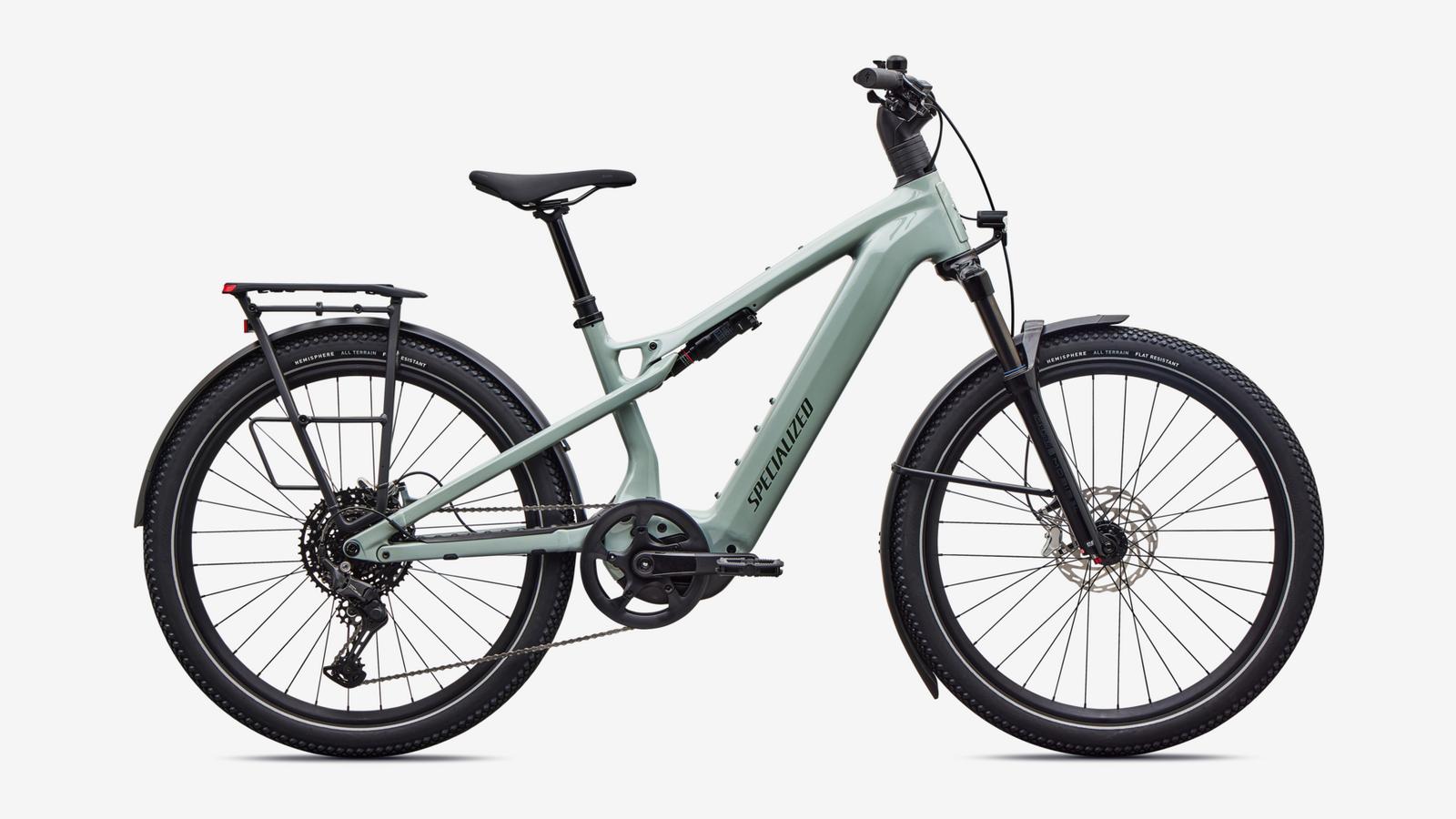

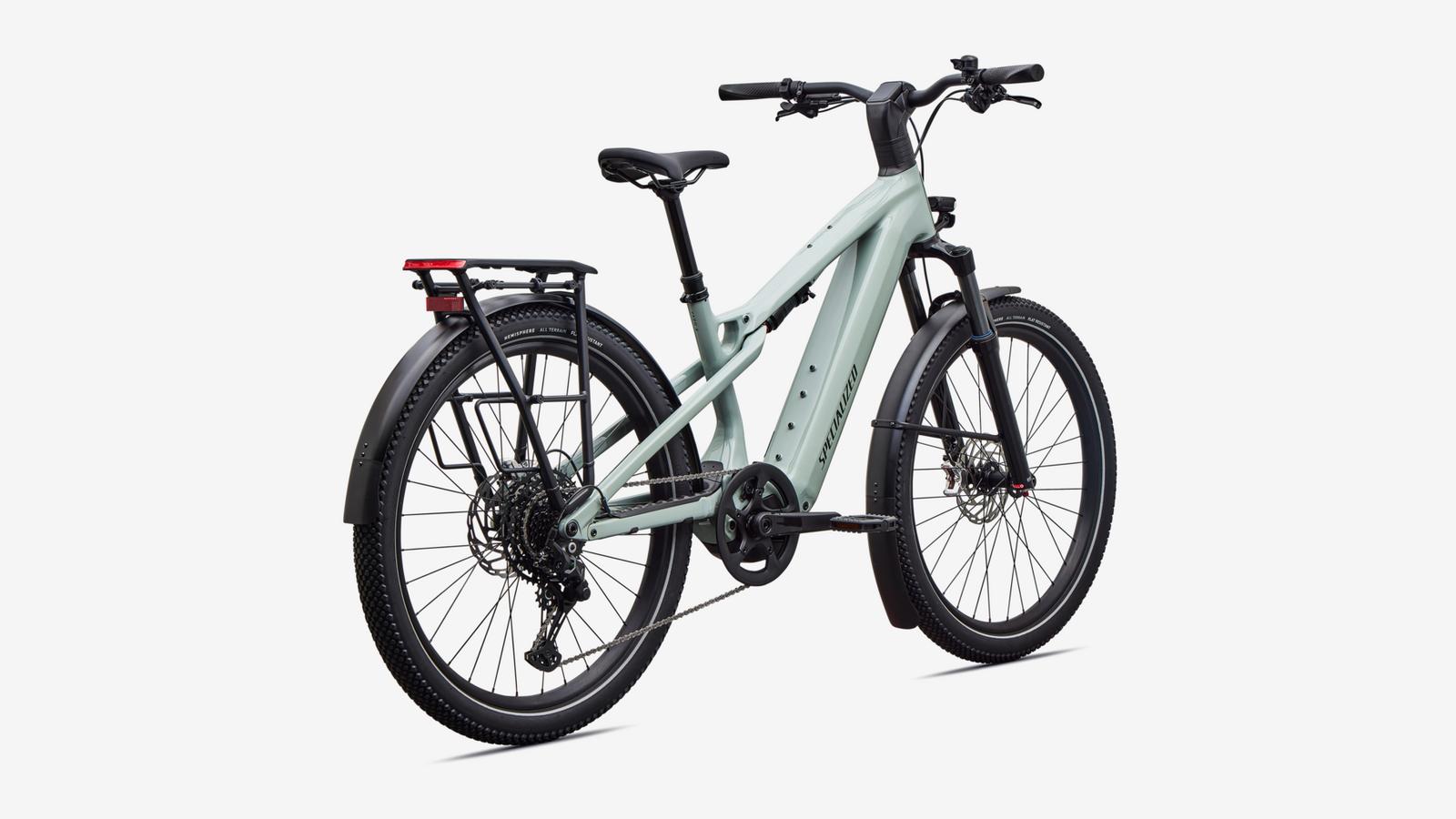

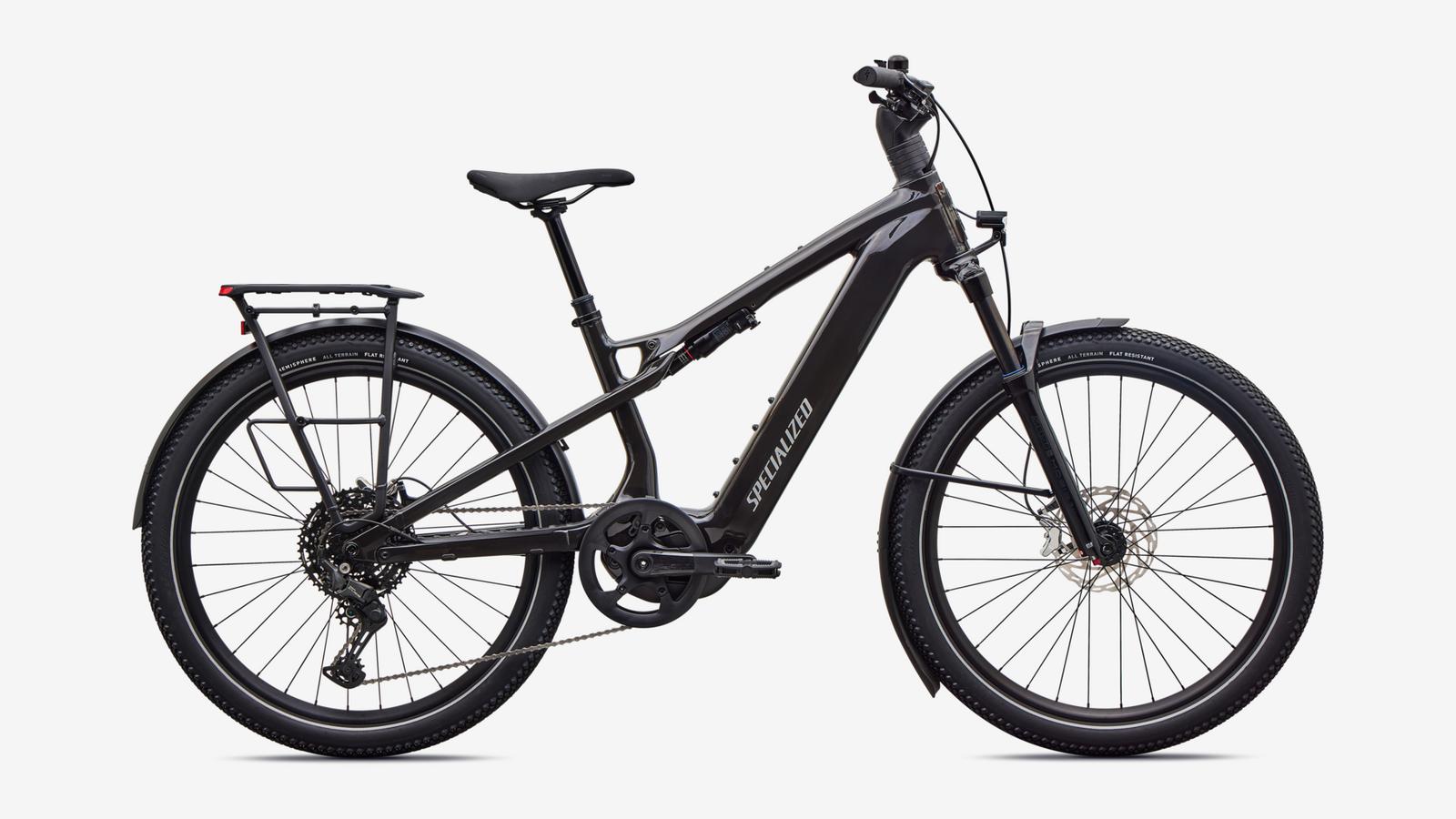

Turbo Vado 3 X 4.0
Take A Ride on The Wild Side
When the ride demands more, Vado 3 X answers. From urban adventures to off-road trekking, this is effortless power, elevated by full-suspension confidence. Born from Levo 4’s SuperNatural DNA with instinctive power, exceptional comfort, and incredible ride-anywhere range. With its class-leading features like our Turbo System Lock and built-in Apple Find My, Vado 3 X keeps every ride calm, composed, and in control wherever the journey leads. The art of arrival - perfected.
Features
Use
Full-suspension all-terrain e-bike
E-Bike System

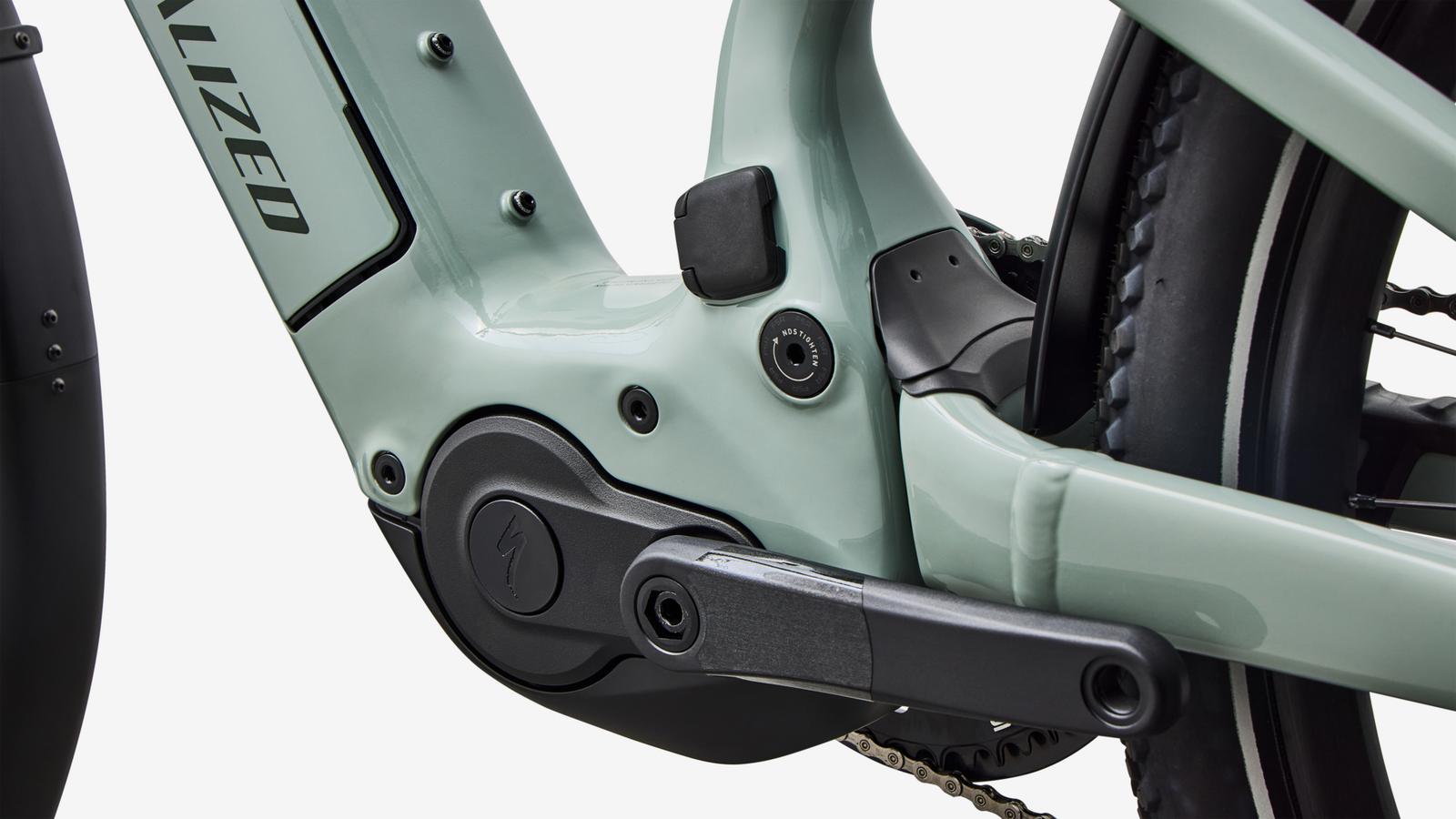

Specialized 3.1 motor w/ 810 W & 105 Nm, 840 Wh Battery with up to 150 km range
Tires
All-terrain tires: 2.6" Hemisphere
Display
Customizable color display
Anti-Theft
Battery and Turbo system lock, with built-in Apple Find My
Phone Charging
USB-C port on the side of the screen for easy phone charging
The Build Specs
E-Bike
| Battery | Specialized Turbo 840Wh, with Abus key lock
Specialized Turbo X2 840Wh integrated battery pack |
|---|---|

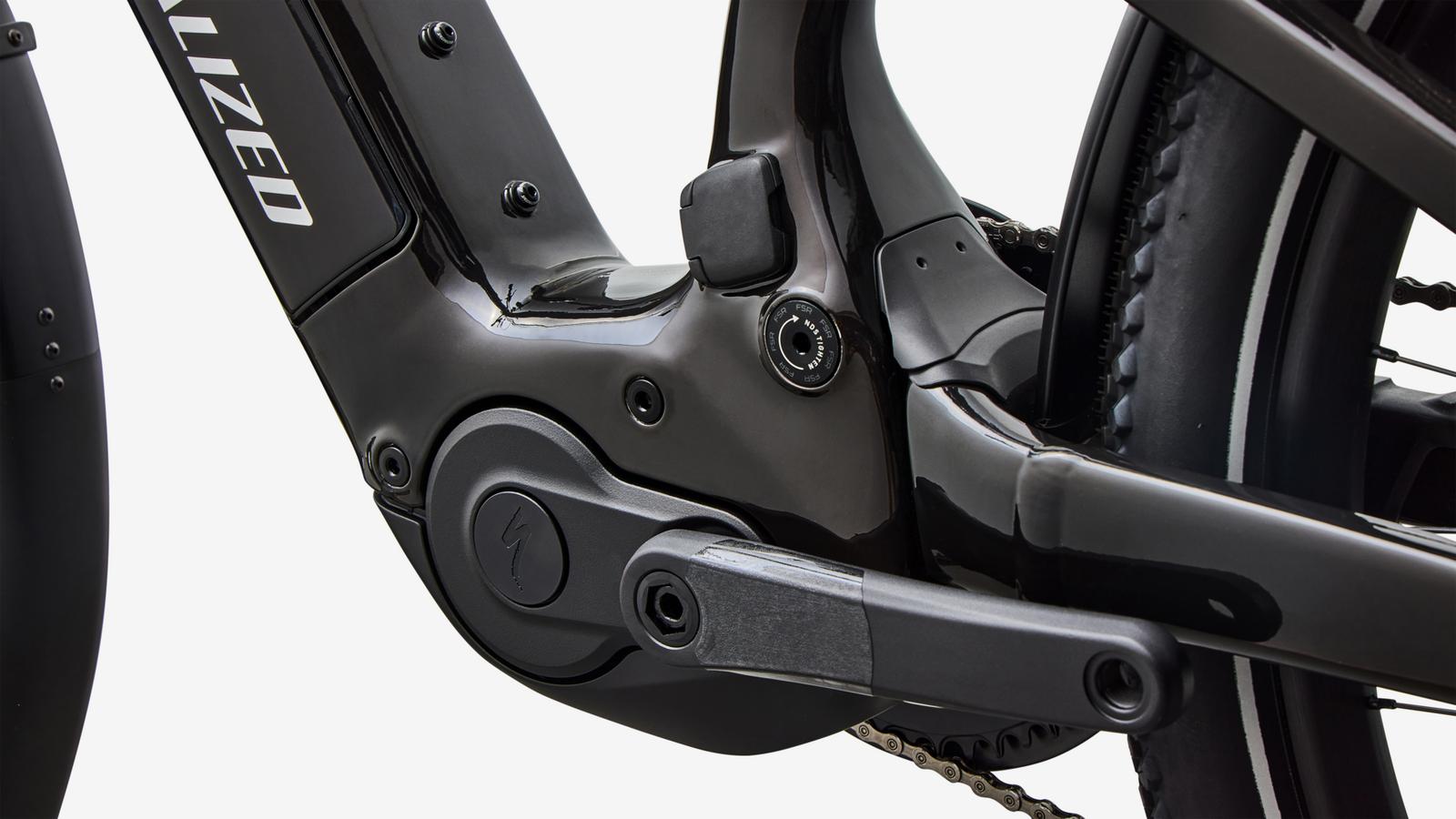

| Motor | Specialized 3.1 Motor, 105Nm torque, 810W power |
| Charger | Specialized 4amp charger |
| UI/Remote | Turbo ergonomic remote |
Frameset
| Seat Binder | Alloy, 38.6mm |
|---|---|
| Frame | Vado X frame, premium comfort with 120mm rear travel, side entry battery |
| Rear Shock | Rock Shox Delux Select rear suspension, 120mm of travel |
| Fork | SR Suntour suspension fork, 130mm of travel, Stanchion 34mm, 15mm Thru axle, 27.5" wheel |
Brakes
| Front Brake | TEKTRO, HD-T5040, 4-piston caliper, extra thick 2.3mm rotor and 5mm brake pads |
|---|---|
| Rear Brake | TEKTRO, HD-T5040, 4-piston caliper, extra thick 2.3mm rotor and 5mm brake pads |
Drivetrain
| Crankset | 170mm, CL 55mm, w/BCD 110mm, 48t, chain guard |
|---|---|
| Chainrings | 48 Teeth with Chain Retention Technology |
| Rear Derailleur | Shimano CUES 11-speed w/ Shadow Plus |
| Cassette | Shimano CUES, 10-speed, 11-48t |
| Chain | Shimano LG |
| Shift Levers | Shimano, CUES, Right, 10-speed RAPIDFIRE PLUS |
Wheels & Tires
| Rims | 27.5 front, 27.5 rear, 30mm inner width, 32h |
|---|---|
| Spokes | DT Swiss Elemental |
| Inner Tubes | Reinforced anti-flat 27.5X2.5/2.7, Schrader valve 60mm |
| Front Hub | Sealed cartridge bearings, 6-bolt, 15x110mm thru-axle, 28h |
| Front Tire | Specialized Hemisphere Flat Resistant ALLTERRAIN Reflect 27.5X2.6 |
| Rear Tire | Specialized Hemisphere Flat Resistant ALLTERRAIN Reflect 27.5X2.6 |
| Rear Hub | Specialized alloy rear hub disc, sealed cartridge bearings, 6-Bolt, 12X148mm thru-axle, 32h, HG Steel Fhb |

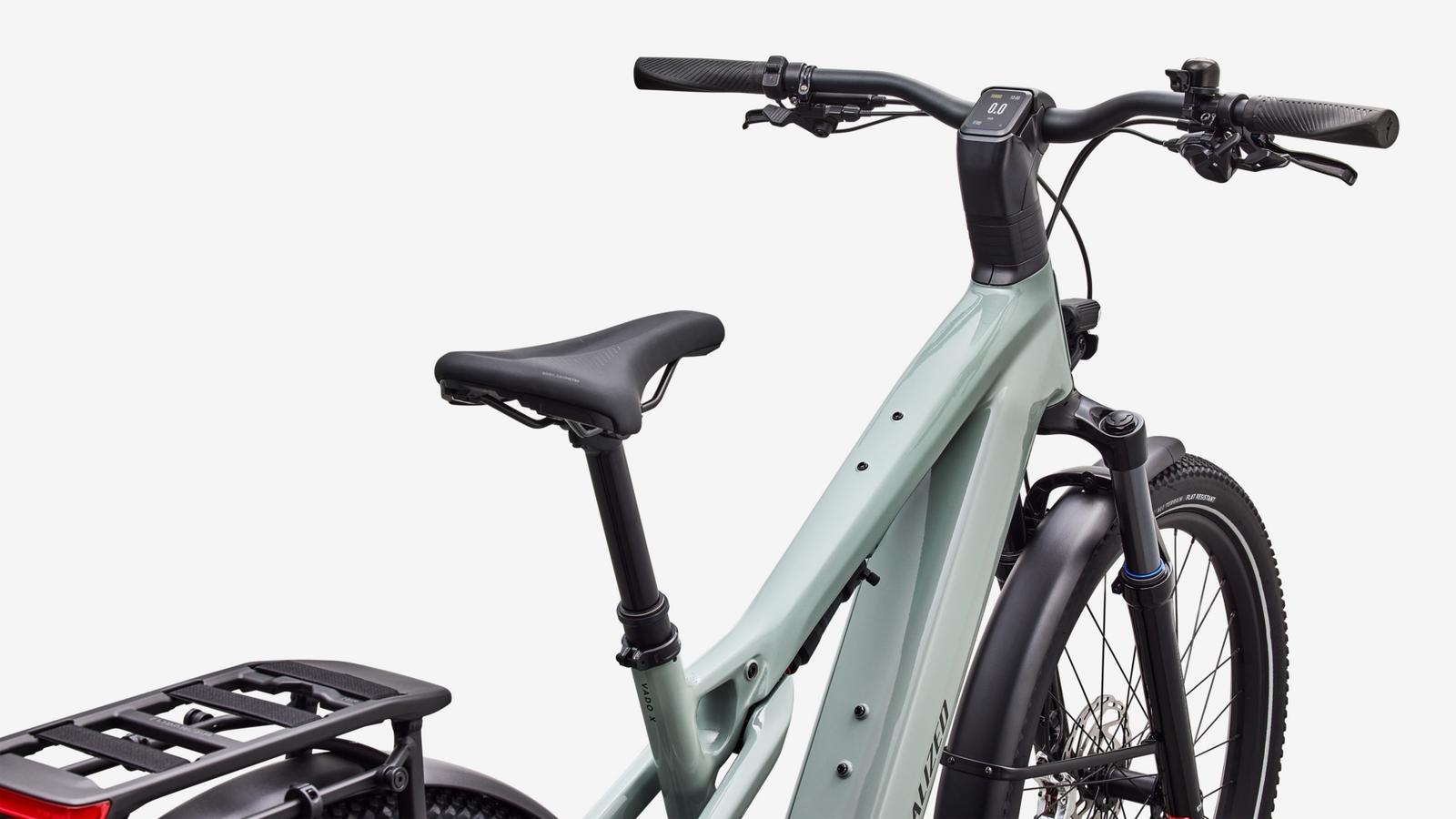

Cockpit

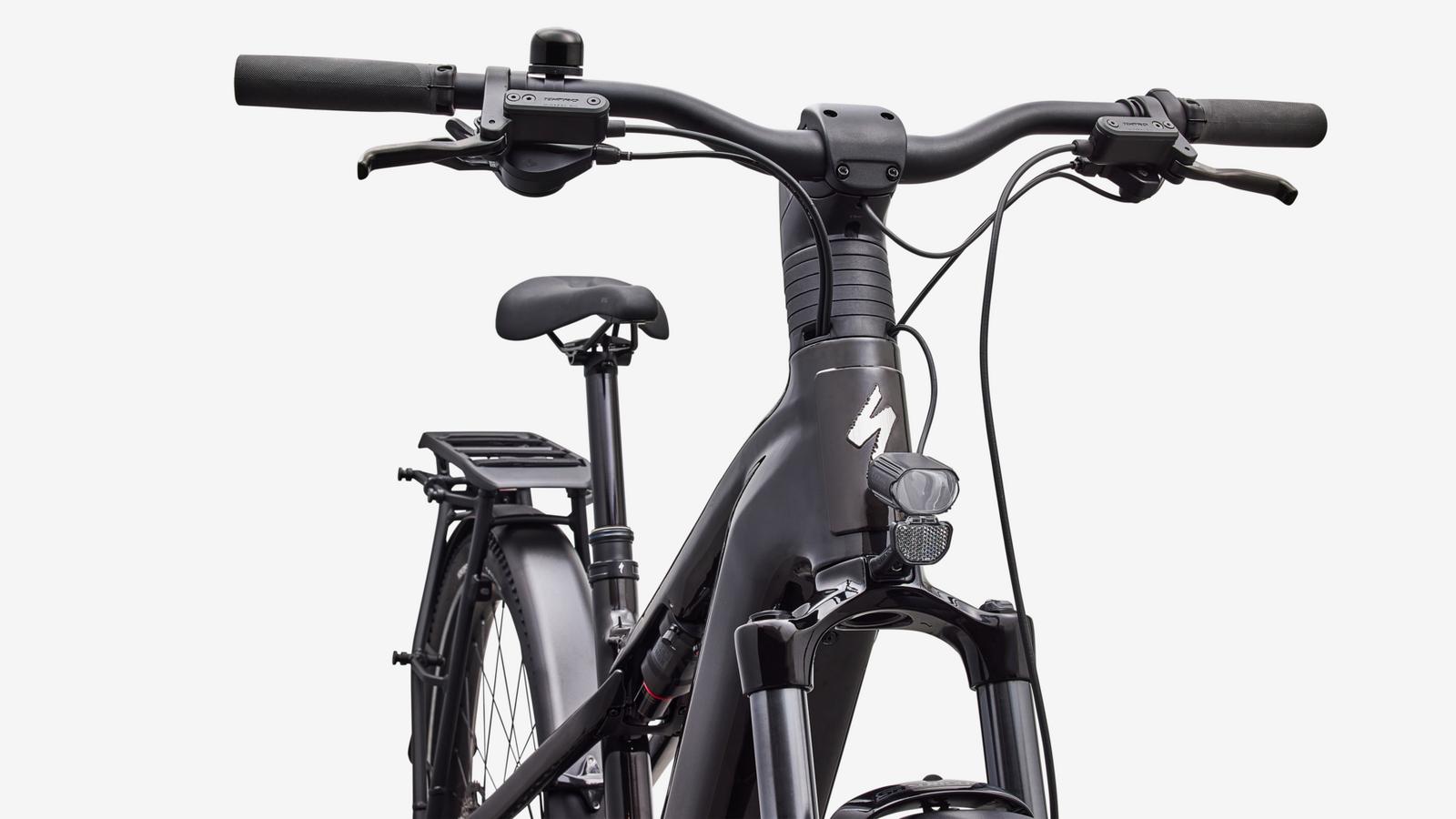

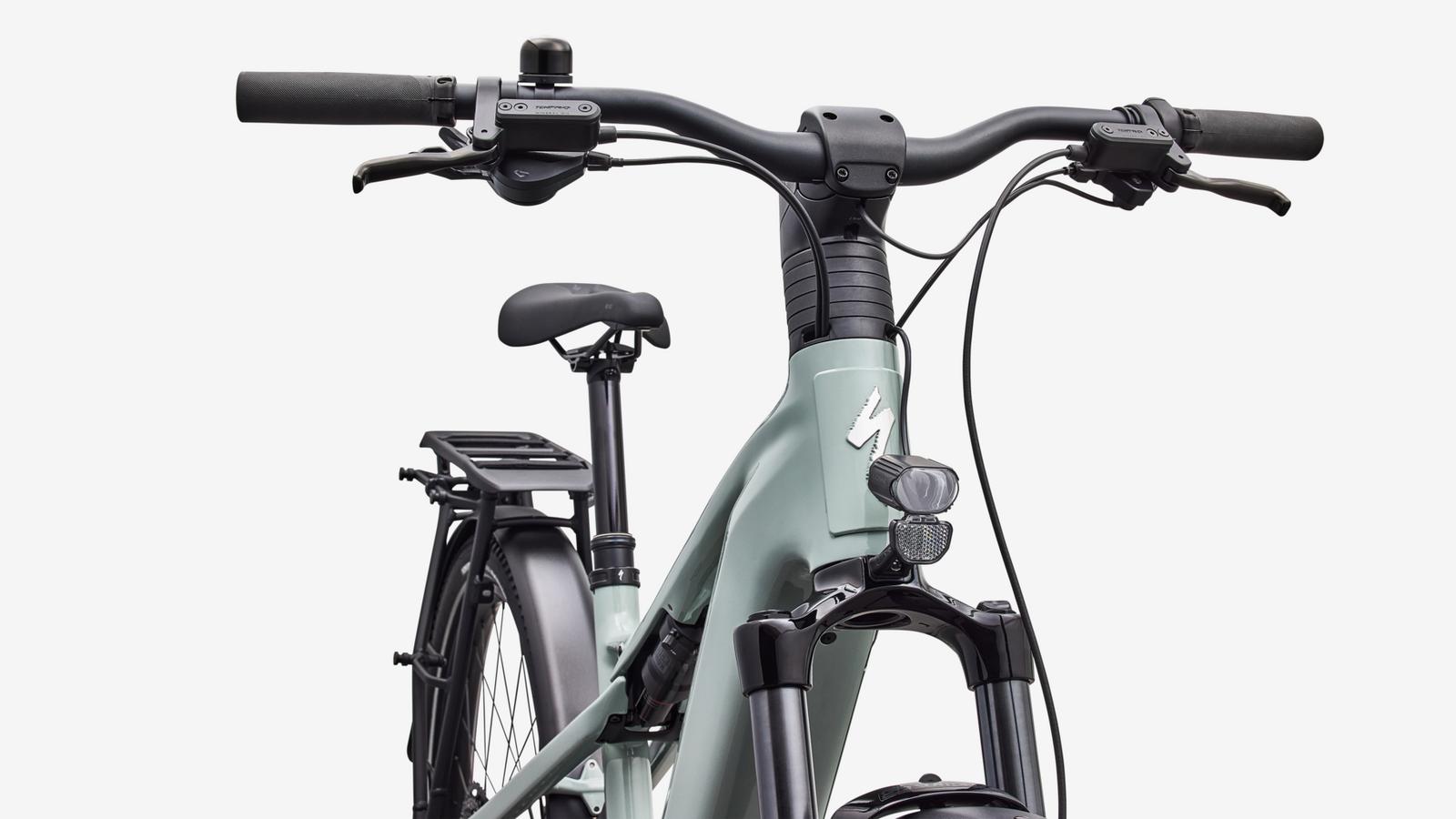

| Handlebars | Alloy, Rise 34.4mm,31.8mm, Back Sweep 13°, Up Sweep 7.8°, Bar End 22.2mm, 690-730mm |
|---|---|
| Saddle | Body geometry, Rivo 2 Gel,168mm
Bridge Sport, Steel rails, 155mm |
| Seatpost | Seatpost, Lowerable, 34.9mm, Offset 0mm, 100/125/150 Travel |
| Grips | Specialized Body Geometry |
| Stem | Stem with integrated colored display & USB-C phone charger, 31.8mm. |
Accessories

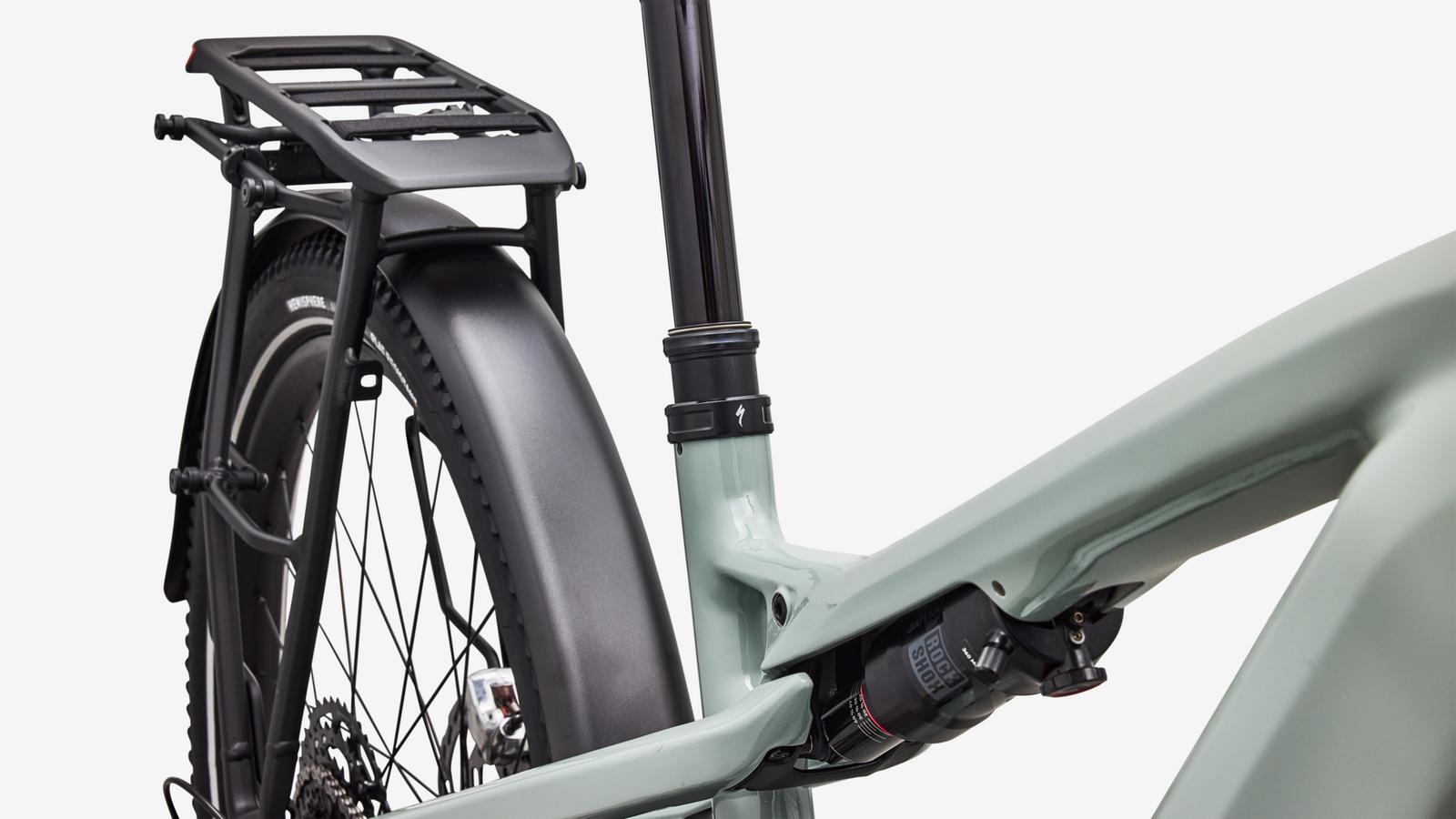

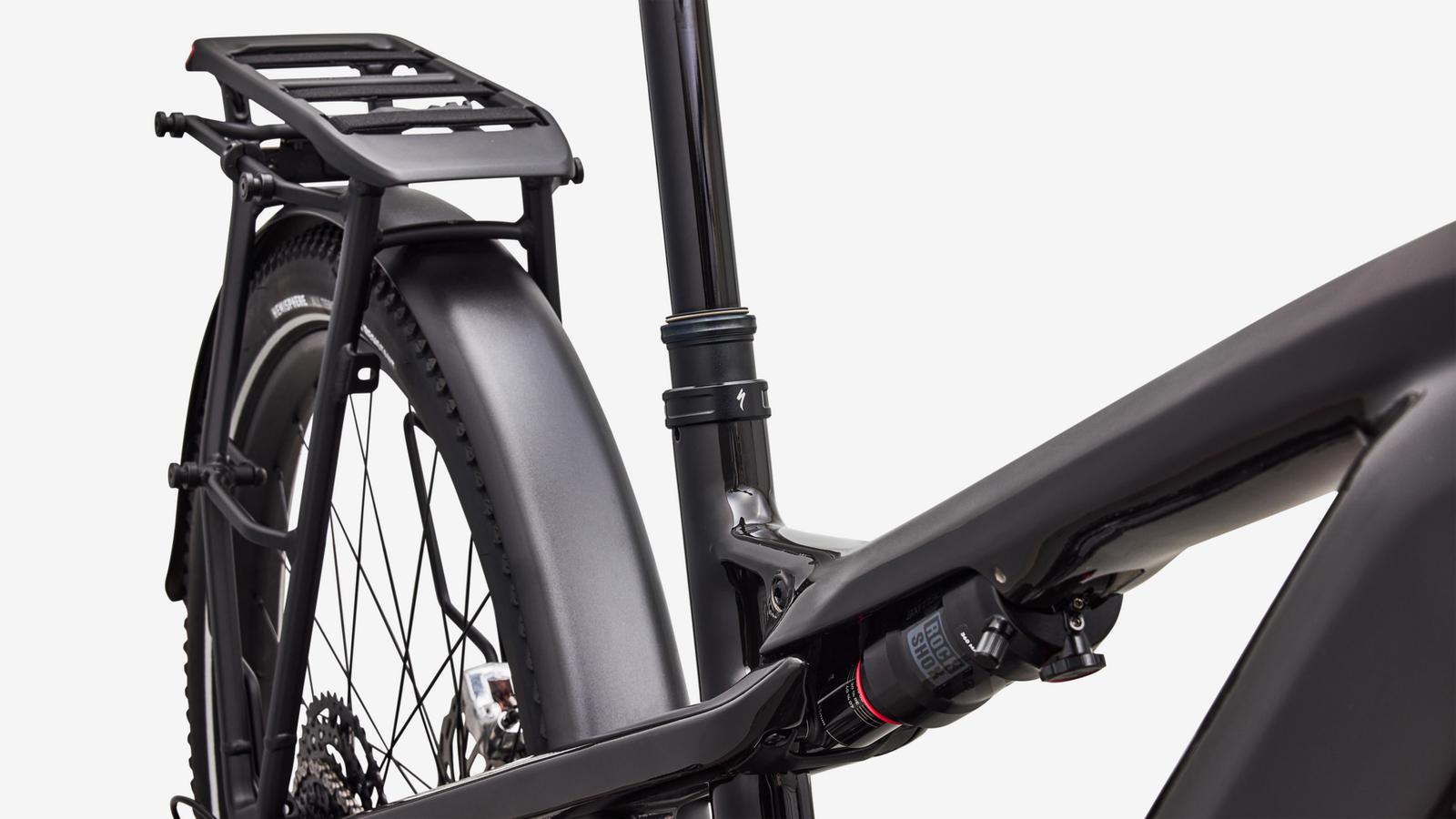

| Rack | 25kg rear rack with integrated straps, QL3.1, MIK Stud, Arkel |
|---|---|
| Kickstand | Adjustable alloy kickstand |
| Bell | Bell |
| Fenders | Extra long fender, water diffusion, durable metal construction |
| Bike Lock | Key secured battery by Abus |
| Headlight | Lezyne POWER StVZO E500+, 500 Lumens w/ reflector |
| SWAT | MIK 25 kg rear rack with integrated elastics, MIK front rack 10kg compatible (not included) |
| Taillight | Rack integrated, automatic braking detection |
| Pedals | Turbo pedals anti-slip |
Weight
| Weight | 30.9 kg (68 lb, 2.0 oz) |
|---|---|
| Weight Size | MD |
The Geometry
| Measurement | S | M | L | XL |
|---|---|---|---|---|
| Stackmm | 618 | 625 | 640 | 667 |
| Reachmm | 430 | 450 | 475 | 500 |
| Head-Tube Lengthmm | 131 | 139 | 155 | 185 |
| Head-Tube Angledegrees | 66 | 66 | 66 | 66 |
| B-B Heightmm | 330 | 330 | 330 | 330 |
| B-B Drop to frontmm | 30 | 30 | 30 | 30 |
| Trailmm | 112 | 112 | 112 | 112 |
| Fork Length (full)mm | 531 | 531 | 531 | 531 |
| Fork Rake/Offsetmm | 44 | 44 | 44 | 44 |
| Front-Centermm | 740 | 764 | 795 | 832 |
| Chain-Stay Lengthmm | 473 | 473 | 473 | 473 |
| Wheelbasemm | 1212 | 1235 | 1267 | 1304 |
| Top-Tube Length (horizontal)mm | 665 | 700 | 607 | 632 |
| Bike Stand-Over Heightmm | 747 | 747 | 747 | 747 |
| Seat-Tube Lengthmm | 390 | 415 | 435 | 460 |
| Seat-Tube Angledegrees | 74 | 74 | 74 | 73 |
