Tarmac SL9 S-Level
$10,499.99
Ride it Risk-Free for 30 Days!
Every bike comes with our 30-Day Ride Guarantee. Take it home, ride it like you own it. If it’s not right, bring it back within 30 days & we’ll refund your purchase or help you find the right bike.
Normal wear and tear is expected because the only way to know it’s the right ride is to ride it.
Overview

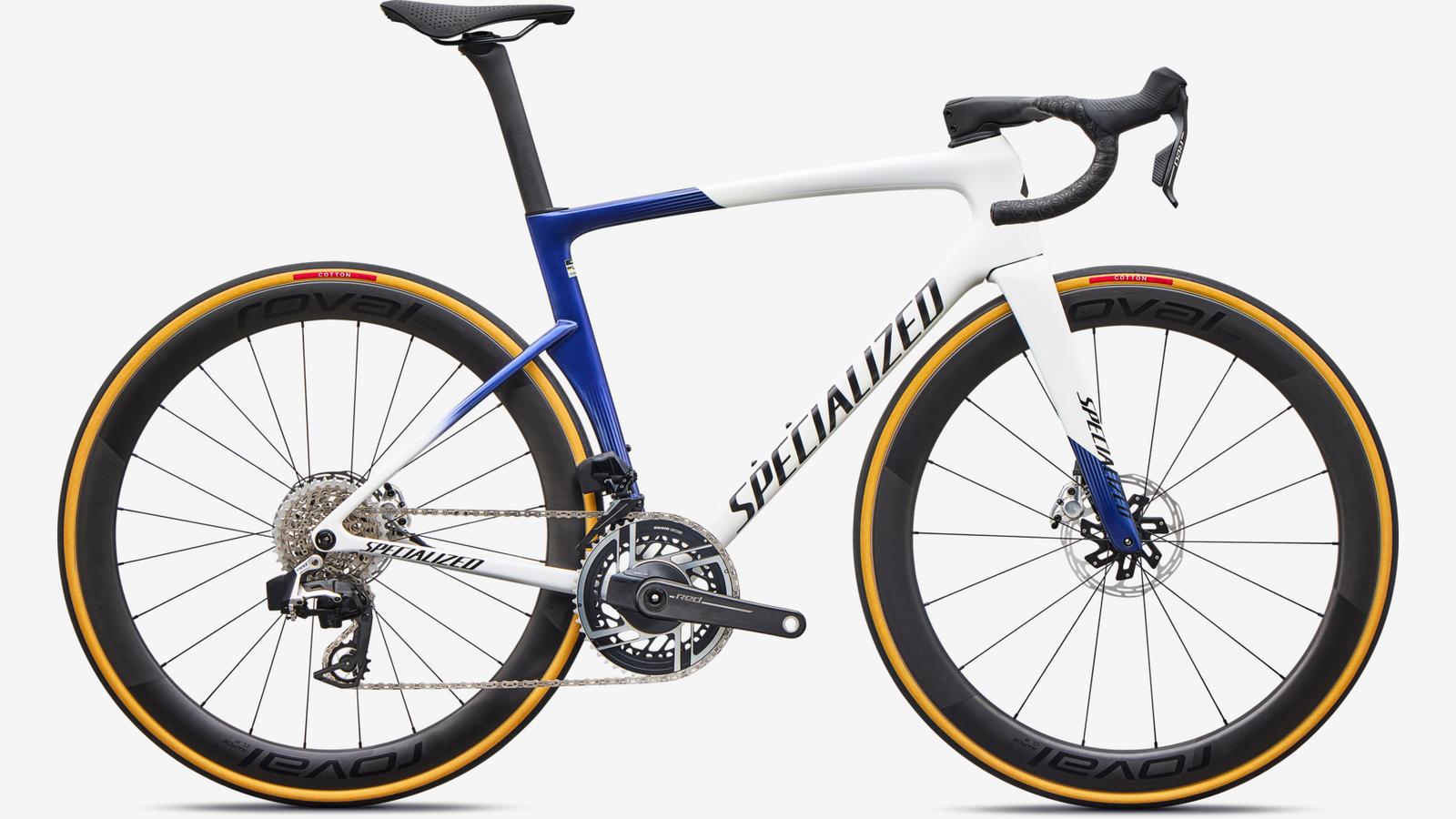

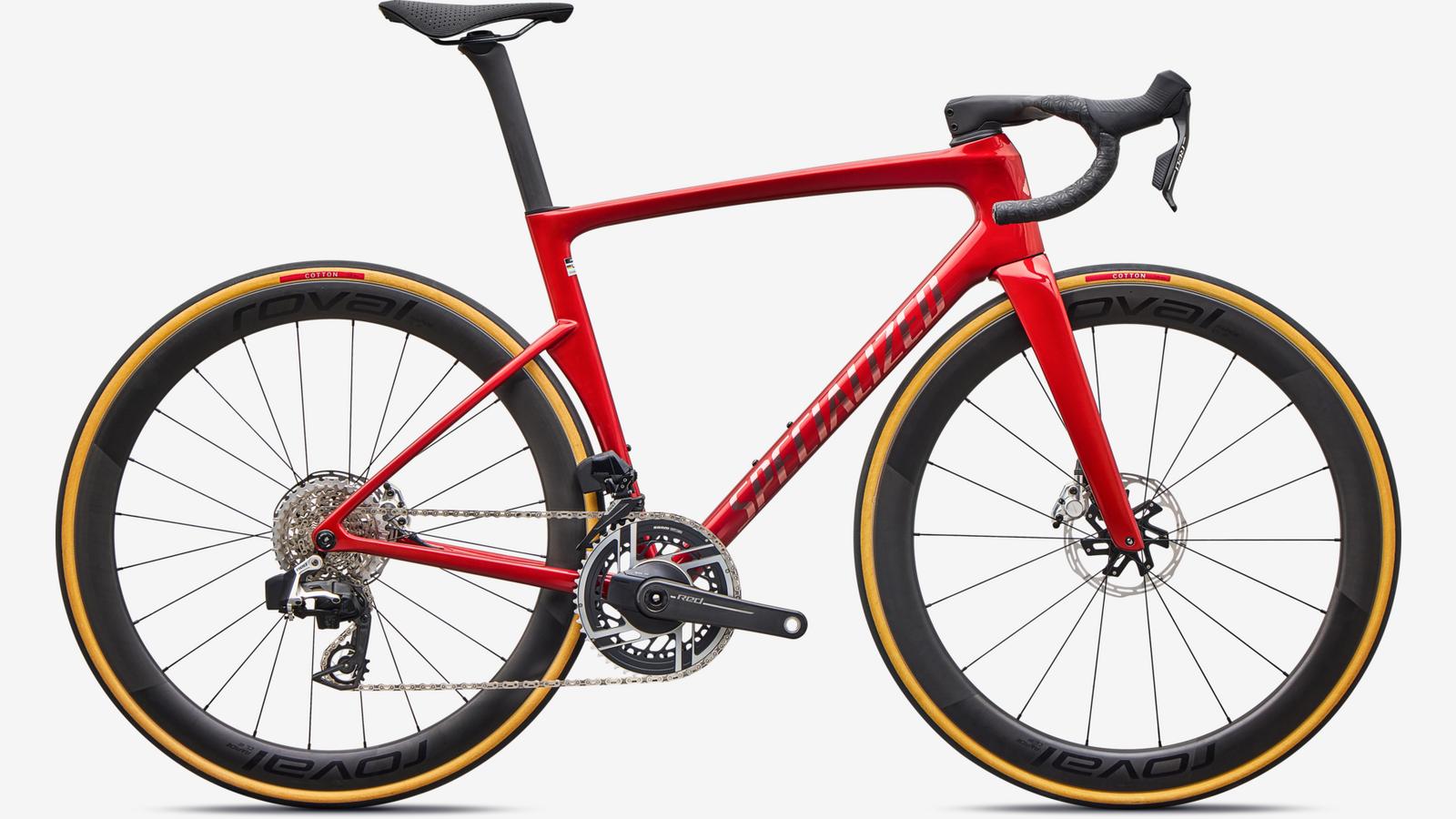

Tarmac SL9 S-Level
One Bike To Rule Them All
The Tarmac SL9 S-Level was born from the fastest road bike ever made. Not just because it’s the lightest. Not just because it’s our most aero. Not because it handles better than anything else on the road. But because it delivers the lowest real-world Time to Finish of any road bike ever made. Tarmac SL9 turns more of your effort into pure speed—validated for real race courses, real terrain, real riders. When the goal is to cross the line first, no road bike gets you there faster.
Features
Use
Road Racing
Frame
FACT 10r Carbon
Wheels
Roval Rapide CL III
Cockpit
Roval Rapide Integrated
Drivetrain
SRAM RED AXS
Weight
7.1 kg
About the Tarmac SL9 S-Level
The Build Specs
Frameset
| Frame | Tarmac SL9 FACT 10r Carbon, Rider First Engineered, Win Tunnel Engineered, Threaded BB, 12x142mm thru-axle, flat-mount disc, UDH dropout |
|---|---|
| Fork | FACT 12r Carbon, 12x100mm thru-axle, flat-mount disc |
Brakes
| Front Brake | SRAM RED E1, hydraulic disc |
|---|---|
| Rear Brake | SRAM RED E1, hydraulic disc |
Drivetrain
| Shift Levers | SRAM RED AXS E1, hydraulic disc |
|---|---|
| Front Derailleur | SRAM RED AXS E1, braze-on |
| Rear Derailleur | SRAM RED AXS E1, 12-speed |
| Cassette | SRAM RED XG-1290 E1, 12-speed, 10-36t |
| Crankset | SRAM RED AXS E1 with Quarq Power Meter, 50/37t |
| Bottom Bracket | SRAM DUB BSA 68 |
| Chain | SRAM RED E1, Flattop |
Wheels & Tires
| Front Wheel | Roval Rapide CL III, Tubeless, 21mm internal width carbon rim, 51mm depth, Win Tunnel Engineered, DT350 hub, 18h, DT Swiss Competition Race Straight Pull Spokes |
|---|---|
| Rear Wheel | Roval Rapide CL III, Tubeless, 21mm internal width carbon rim, 48.5mm depth, Win Tunnel Engineered, DT350 hub, 24h, DT Swiss Competition Race Straight Pull Spokes |
| Front Tire | Cotton TLR, 700x30 |
| Rear Tire | Cotton TLR, 700x30 |
| Inner Tubes | 700x24-34, 80mm presta valve |
Cockpit
| Handlebars | Roval Rapide Cockpit, Integrated Bar/Stem |
|---|---|
| Tape | Supacaz Super Sticky Kush |
| Saddle | Power Pro Mirror, hollow Ti rails |
| Seatpost | S-Works Tarmac SL8 Carbon seat post, FACT Carbon, 15mm offset |
| Seat Binder | Tarmac integrated wedge |
Weight
| Weight | 7.1 kg (15 lb, 10.4 oz) |
|---|---|
| Weight Size | 56 |
The Geometry
| Measurement | 44 | 49 | 52 | 54 | 56 | 58 | 61 |
|---|---|---|---|---|---|---|---|
| Frame Stackmm | 501 | 514 | 527 | 544 | 565 | 591 | 612 |
| Frame Reachmm | 366 | 375 | 380 | 384 | 395 | 402 | 408 |
| Stack to Stemmm | 509 | 522 | 535 | 552 | 573 | 599 | 620 |
| Reach to Stemmm | 363 | 372 | 377 | 381 | 393 | 400 | 406 |
| Head Tube Lengthmm | 99 | 109 | 120 | 140 | 157 | 184 | 204 |
| Head Tube Angledegrees | 70.5 | 71.75 | 72.5 | 72.5 | 73.5 | 73.5 | 74 |
| BB Heightmm | 266 | 266 | 266 | 268 | 268 | 268 | 268 |
| BB Dropmm | 74 | 74 | 74 | 72 | 72 | 72 | 72 |
| Trailmm | 71 | 63 | 58 | 58 | 55 | 55 | 52 |
| Fork Length, Fullmm | 370 | 370 | 370 | 370 | 370 | 370 | 370 |
| Fork Rake/Offsetmm | 47 | 47 | 47 | 47 | 44 | 44 | 44 |
| Front Centermm | 567 | 570 | 572 | 582 | 587 | 602 | 609 |
| Chainstay Lengthmm | 410 | 410 | 410 | 410 | 410 | 410 | 410 |
| Wheelbasemm | 970 | 973 | 975 | 986 | 991 | 1006 | 1013 |
| Top Tube Length, Horizontalmm | 496 | 509 | 531 | 540 | 563 | 577 | 595 |
| Bike Standover Heightmm | 722 | 734 | 745 | 767 | 785 | 807 | 833 |
| Seat Tube Lengthmm | 433 | 445 | 456 | 473 | 494 | 515 | 545 |
| Seat Tube Angledegrees | 75.5 | 75.5 | 74 | 74 | 73.5 | 73.5 | 73 |
